Pompe de test hydraulique 1000 bar - Hydraulic Pressure Test Pump

ADT-936 Hydraulic Pressure Test Pump 1000 bar

Pressure range : 85% of vacuum up to 1000 bar
Media : Oil
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 520×360 ~ Height ×230 (mm) 16 kg
User-friendly, robust design and reliable performance

Quantity

En cours d’appro. livraison sous 10j

Garanties sécurité
Politique de livraison
Politique retours

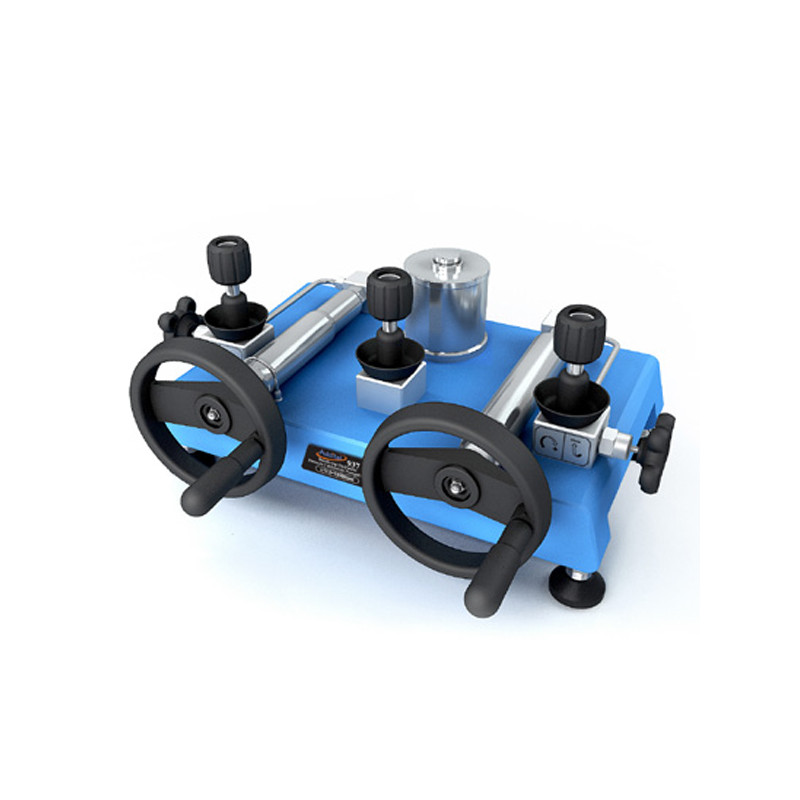

The ADT-936 Hydraulic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 85% vacuum to 1000bar. With the patented screw press technology, the high pressure can be easily generated, as well as increased and decreased smoothly. With no check valve (non-returning valve), the ADT-936 avoids the troublesome leakage issues that is usually experienced with most hand pumps and allows for minimal maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The ADT-936 is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the field or laboratory.

Reference ADT-936

Download

ADT-936 Pompe de test

Pompe manuelle hydraulique

Reviews

No customer reviews for the moment.

Write your review

ADT-936 Hydraulic Pressure Test Pump 1000 bar

Pressure range : 85% of vacuum up to 1000 bar
Media : Oil
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 520×360 ~ Height ×230 (mm) 16 kg
User-friendly, robust design and reliable performance

Write your review

Quality

Title for your review^* Your review^* Enter Captcha^*

^* Required fields
