Pompe de teste hydraulique 700 bar PMH-700 Hydraulic Pressure Test Pump

PMH 700 - Hydraulic Pressure Test Pump 700 bar

Pressure range : 0 up to 700 bar
Media : Oil or water
Adjustment resolution: 200 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/2 BSP F
Dimensions: Base : 384×198 ~ Height ×180 (mm) 4,7 kg
User-friendly, robust design and reliable performance

€1,860.00 Tax included

Quantity

En cours d’appro. livraison sous 10j

Garanties sécurité
Politique de livraison
Politique retours

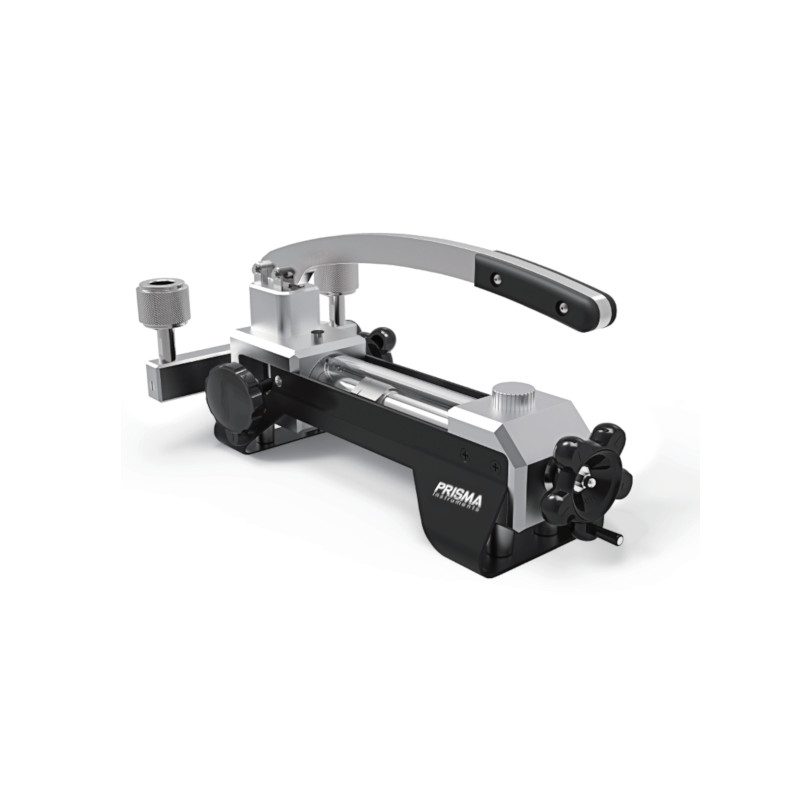

The Prisma PMH-700 Hydraulic Pressure Test Pump is a hand operated pressure pump designed with a reversing valve generating pressures up to 700 Bar. A resolution of 200 mbar is obtained thanks to its exceptionally high-quality fine adjustment valve. A shut-off valve has been especially designed to generate stable the pressure throughout the calibration. Built with an integrated filter in order to protect the pump by isolating all impurities, it also avoids any maintenance and consequently it increases its lifespan. The two connectors allow an easy connecting /disconnecting by hand to the the measurement instruments, making the calibration work efficient and pleasant. The PMH-700 comparison pump is your essential tool for calibrating your pressure instruments.

Reference PMH-700

Download

PMH-700 Pompe de test

Pompe de pression manuelle hydraulique

Reviews

No customer reviews for the moment.

Write your review

PMH 700 - Hydraulic Pressure Test Pump 700 bar

Pressure range : 0 up to 700 bar
Media : Oil or water
Adjustment resolution: 200 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/2 BSP F
Dimensions: Base : 384×198 ~ Height ×180 (mm) 4,7 kg
User-friendly, robust design and reliable performance

Write your review

Quality

Title for your review^* Your review^* Enter Captcha^*

^* Required fields
