ADT-927 Pompe de test hydraulique 700 bar Hydraulic Pressure Test Pump

ADT-927 - Hydraulic Pressure Test Pump 700 bar

Pressure range : 85% of vacuum up to 700 bar
Media : Oil and Water
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 290×198 ~ Height ×135 (mm) 3,2kg
User-friendly, robust design and reliable performance

Quantity

En cours d’appro. livraison sous 10j

Garanties sécurité
Politique de livraison
Politique retours

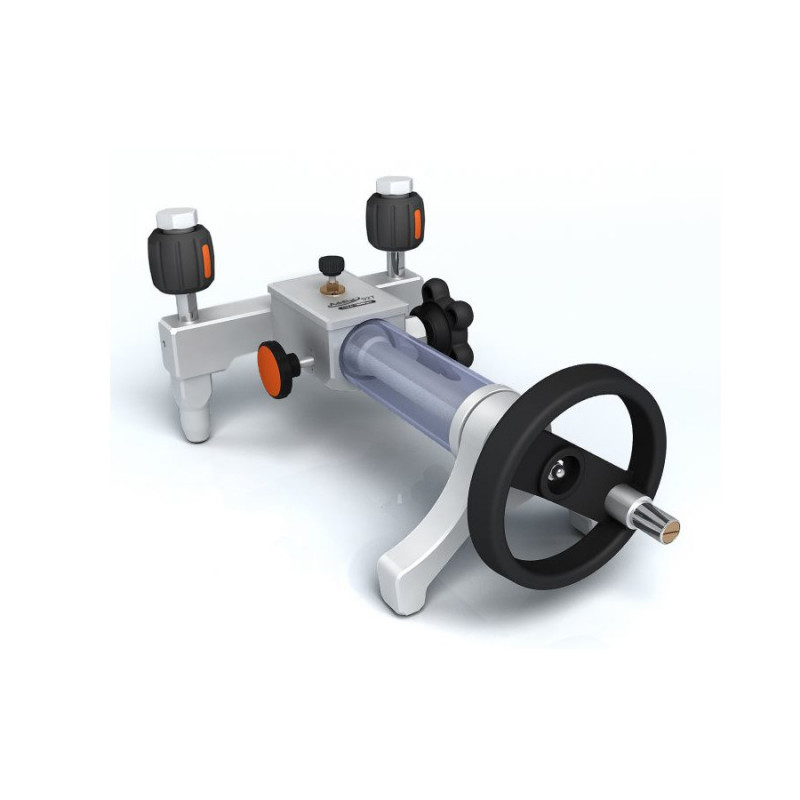

The ADT-927 Hydraulic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 85% vacuum to 700bar. With the patented screw press technology, the high pressure can be easily generated, as well as increased and decreased smoothly. With no check valve (non-returning valve), the ADT-927 avoids the troublesome leakage issues that is usually experienced with most hand pumps and allows for minimal maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The ADT-927 is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the field or laboratory.

Reference ADT-927

Download

ADT-927 Pompe de test

Pompe manuelle hydraulique

Reviews

No customer reviews for the moment.

Write your review

ADT-927 - Hydraulic Pressure Test Pump 700 bar

Pressure range : 85% of vacuum up to 700 bar
Media : Oil and Water
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 290×198 ~ Height ×135 (mm) 3,2kg
User-friendly, robust design and reliable performance
