Pompe de teste hydraulique 700 bar PMH-700 Hydraulic Pressure Test Pump

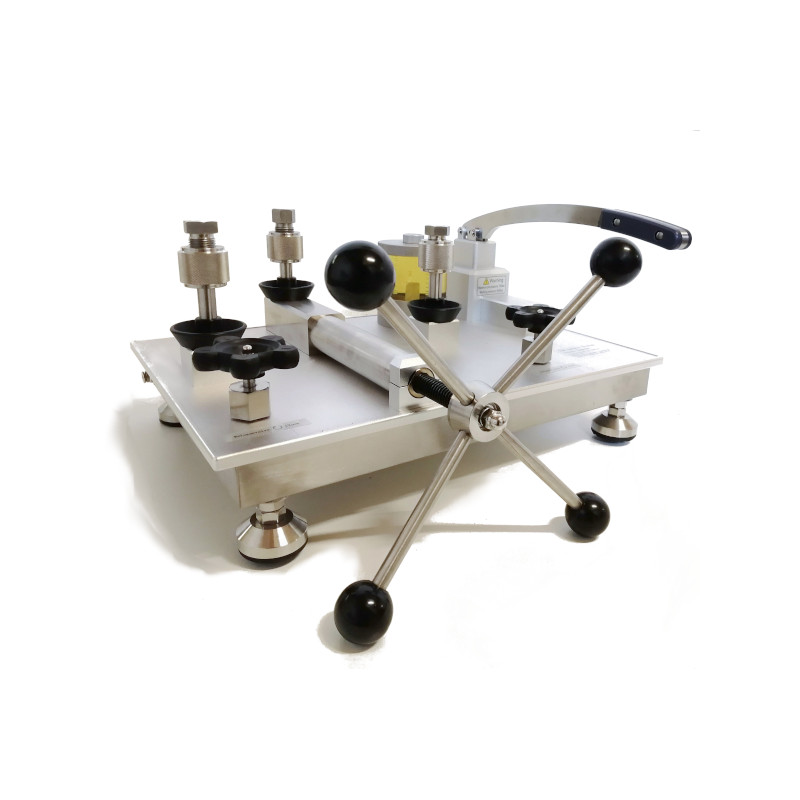

PMH-2500 - Hydraulic Pressure Test Pump 2500 bar

Pressure range: 0 to 2500 bar
Media: Mineral oil
Resolution: 10 mbar ~ 1 kPa
Material: Body: Stainless steel & aluminum ~ Fittings: Stainless steel ~ Gaskets: Buna-N
Instrument connections: 3x 1/2 G F ports
Dimensions: Base: 450 × 380 ~ Height × 250 mm
Weight: 17 kg
Ease of use, robust design and reliable performance

€4,260.00 Tax included

Quantity

En cours d’appro. livraison sous 10j

Garanties sécurité
Politique de livraison
Politique retours

The Prisma PMH-700 Hydraulic Pressure Test Pump is a hand operated pressure pump designed with a reversing valve generating pressures up to 700 Bar. A resolution of 200 mbar is obtained thanks to its exceptionally high-quality fine adjustment valve. A shut-off valve has been especially designed to generate stable the pressure throughout the calibration. Built with an integrated filter in order to protect the pump by isolating all impurities, it also avoids any maintenance and consequently it increases its lifespan. The two connectors allow an easy connecting /disconnecting by hand to the the measurement instruments, making the calibration work efficient and pleasant. The PMH-700 comparison pump is your essential tool for calibrating your pressure instruments.

Reference PMH-2500

Download

PMH-2500 Générateur de pression hydraulique

Reviews

No customer reviews for the moment.

Write your review

PMH-2500 - Hydraulic Pressure Test Pump 2500 bar

Pressure range: 0 to 2500 bar
Media: Mineral oil
Resolution: 10 mbar ~ 1 kPa
Material: Body: Stainless steel & aluminum ~ Fittings: Stainless steel ~ Gaskets: Buna-N
Instrument connections: 3x 1/2 G F ports
Dimensions: Base: 450 × 380 ~ Height × 250 mm
Weight: 17 kg
Ease of use, robust design and reliable performance
