Pompe de teste hydraulique 700 bar PMH-700 Hydraulic Pressure Test Pump

PMH1000 Hydraulic Pressure Test Pump 1000 bar

Pressure range: 0 to 1000 bar
Media: Oil or Water (optional)
Oil tank: 100 ml
Very fine adjustment valve for optimum resolution
Material: Body: Stainless steel ~ Fittings: Stainless steel ~ Seals: Buna-N
Instrument test connections: 1/4 G (F)
Standard connections: 3/8 G (F)
Dimensions: 240 × 185 x 95 mm 1.8 kg
Ease of use, ergonomics & reliable performance

€1,440.00 Tax included

Quantity

En cours d’appro. livraison sous 10j

Garanties sécurité
Politique de livraison
Politique retours

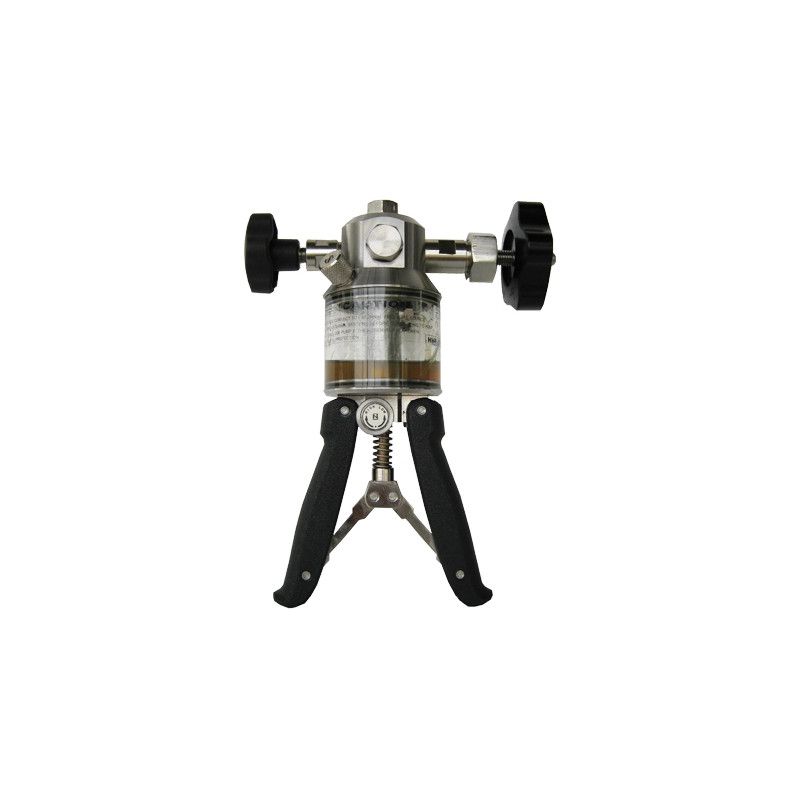

The Prisma instruments PMH1000 pneumatic pressure test pump is a manual pressure pump designed with a valve that generates pressures up to 1000 Bar, at the touch of the handle. Thanks to its high quality fine adjustment valve, an optimal resolution is obtained. A specially designed shut-off valve generates stable pressure throughout the calibration. Its two quick connectors allow it to easily connect / disconnect measuring instruments, making calibration work efficient and pleasant. The PMH1000 comparison pump will become your essential tool for calibrating your pressure instruments.

Reference PMH700

Download

PMH1000 Hydraulic Pressure Test Pump 1000 bar

Manual hydraulic pressure generator 1000 bar

Reviews

No customer reviews for the moment.

Write your review

PMH1000 Hydraulic Pressure Test Pump 1000 bar

Pressure range: 0 to 1000 bar
Media: Oil or Water (optional)
Oil tank: 100 ml
Very fine adjustment valve for optimum resolution
Material: Body: Stainless steel ~ Fittings: Stainless steel ~ Seals: Buna-N
Instrument test connections: 1/4 G (F)
Standard connections: 3/8 G (F)
Dimensions: 240 × 185 x 95 mm 1.8 kg
Ease of use, ergonomics & reliable performance

Write your review

Quality

Title for your review^* Your review^* Enter Captcha^*

^* Required fields

16 other products in the same category:

ADT-918 Pneumatic Pressure Test Pump 100 bar

Pressure range : 95% of vacuum up to 100 bar
Media : Air
Adjustment resolution: 0,1 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 315×198 ~ Height ×140 (mm) 2.6 kg
User-friendly, robust design and reliable performance

Quick view

PMP-0.4 Pneumatic Test Pump +/- 400 mbar

Pressure range: -0.4 to 0.4 bar
Media: Air
Resolution: 0.001 mbar - 0.1 Pa
Material: Body: Stainless steel & aluminum ~ Fittings: Stainless steel ~ Gaskets: Buna-N
Instrument connections: 1 / 4NPT F, 1 / 4BSP F, or M20X1.5 F
Dimensions: Base: 240 × 130 ~ Height × 130 (mm) 1.5 kg
Ease of use, robust design and reliable performance

€1,104.00

Quick view

PMH200 Hydraulic Pressure Test Pump 200 bar

Pressure range: 0 to 200 bar
Media: Hydraulic oil / Water (optional)
Oil tank: 100 ml
Very fine adjustment valve for optimum resolution
Connections Standard instruments: 1/4 G F
Connections Test Instruments: 1/4 G F
Hydraulic hose 1 meter with suitable connection
Ergonomics & Ease of use
Robust Design & Stable Performance

€858.00

Quick view

ADT-919A Pneumatic Pressure Test Pump 140 bar

Pressure range : 95% of vacuum up to 140 bar
Media : Air
Adjustment resolution: 0,1 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 540×270 ~ Height ×178 (mm) 6.5 kg
User-friendly, robust design and reliable performance

Quick view

PMP25 Pneumatic Test Pump -0.9 to 25 bar

Pressure range: -0.9 to 25 bar
Media: Air
Resolution: 1 mbar
Connections Standard instruments: 3/8 BSP F
Connections Instruments test: 1/4 BSP F
Nylon hose 1 meter with suitable connector
Ergonomics & Ease of use
Robust Design & Stable Performance
No specific maintenance to be expected

€684.00

Quick view

PMP35 Pneumatic Test Pump -0.9 to 35 bar

Pressure range: -0.9 to 35 bar
Media: Air
Resolution: 1 mbar
Connections Standard instruments: 3/8 BSP F
Connections Instruments test: 1/4 BSP F
Nylon hose 1 meter with suitable connector
Ergonomics & Ease of use
Robust Design & Stable Performance
No specific maintenance to be expected

€708.00

Quick view

OGauge - Pressure gauge, pressure switch, pressure transmitter and data logger

IIoT capability
Integrated pressure sensor with stainless steel diaphragm
Accuracy 0.25% standard (finer accuracies are available)
OLED color display
Easy to use via a mobile application in real time
Possibility to set parameters via a dashboard
4 relays, switch-on and switch-off points can be set independently
Possibility to program a delayed measurement

Quick view

ADT-925 - Hydraulic Pressure Test Pump 400 bar

Pressure range : 85% of vacuum up to 400 bar
Media : Oil and Water
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 240×140 ~ Height ×120 (mm) 1,7kg
User-friendly, robust design and reliable performance

Quick view

PMP2 Pneumatic Test Pump -0.9 to 2 bar

Pressure range: -0.9 to 2 bar
Media: Air
Resolution: 0.05 mbar
Connections Standard instruments: 3/8 BSP F
Connections Instruments test: 1/4 BSP F
Nylon hose 1 meter with suitable connector
Ergonomics & Ease of use
Robust Design & Stable Performance
No specific maintenance to be expected

€708.00

Quick view

PMP-100 Pneumatic Test Pump -0.95 to 100 bar

Pressure range : 95% of vacuum up to 100 bar
Media : Air
Adjustment resolution: 10 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/2 NPT F, 1/2 BSP F, or M20X1.5 F
Dimensions: Base : 500 ×325 ~ Height ×135 (mm) 6.4 kg
User-friendly, robust design and reliable performance

€2,712.00

Quick view

ADT-927 - Hydraulic Pressure Test Pump 700 bar

Pressure range : 85% of vacuum up to 700 bar
Media : Oil and Water
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 290×198 ~ Height ×135 (mm) 3,2kg
User-friendly, robust design and reliable performance

Quick view

copy of PMP35 Pneumatic Test Pump -0.9 to 35 bar

Pressure range: -0.9 to 40 bar
Media: Air
Resolution: 1 mbar
Connections Standard instruments: 3/8 BSP F
Connections Instruments test: 1/4 BSP F
Nylon hose 1 meter with suitable connector
Ergonomics & Ease of use
Robust Design & Stable Performance
No specific maintenance to be expected

€708.00

Quick view

PMP-160 Pneumatic Test Pump -0.95 to 160 bar

Pressure range : -0,95 bar to 160 bar
Media : Air
Adjustment resolution: 1 KPa - 10 mbar
Connections: 1/2,NPT F, 1/2 BSP F, or M20X1.5 F
Ergonomics & user-friendly
Robust design and reliable performance
No specific maintenance required
Delivered with a standard pressure gauge - ISO17025 Certificate (optional)

€4,104.00

Quick view

ADT-917 - Pneumatic Pressure Test Pump 70 bar

Pressure range : 95% of vacuum up to 70 bar
Media : Air
Adjustment resolution: 0,1 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 315×198 ~ Height ×140 (mm) 2.6 kg
User-friendly, robust design and reliable performance

Quick view

PMH-1000 Hydraulic Pressure Test Pump 1000 bar Water/oil

Pressure range: 0 to 1000 bar
Media: Mineral oil
Resolution: 10 mbar ~ 1 kPa
Material: Body: Stainless steel & aluminum ~ Fittings: Stainless steel ~ Gaskets: Buna-N
Instrument connections: 3x 1/2 G F ports
Dimensions: Base: 410 × 310 ~ Height × 120 mm
Weight: 11 kg
Ease of use, robust design and reliable performance

€3,180.00

Quick view

ADT-920 Pneumatic Pressure Test Pump 200 bar

Pressure range : 95% of vacuum up to 200 bar
Media : Air
Adjustment resolution: 0,1 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 540×270 ~ Height ×178 (mm) 6,5 kg
User-friendly, robust design and reliable performance

Quick view
