Pompe de teste hydraulique 700 bar PMH-700 Hydraulic Pressure Test Pump

PMH700 Hydraulic Pressure Test Pump 700 bar

Pressure range: 0 to 700 bar
Media: Oil or Water (optional)
Oil tank: 100 ml
Very fine adjustment valve for optimum resolution
Material: Body: Stainless steel ~ Fittings: Stainless steel ~ Seals: Buna-N
Instrument test connections: 1/4 G (F)
Standard connections: 3/8 G (F)
Dimensions: 240 × 185 x 95 mm 1.8 kg
Ease of use, ergonomics & reliable performance

€1,152.00 Tax included

Quantity

En cours d’appro. livraison sous 10j

Garanties sécurité
Politique de livraison
Politique retours

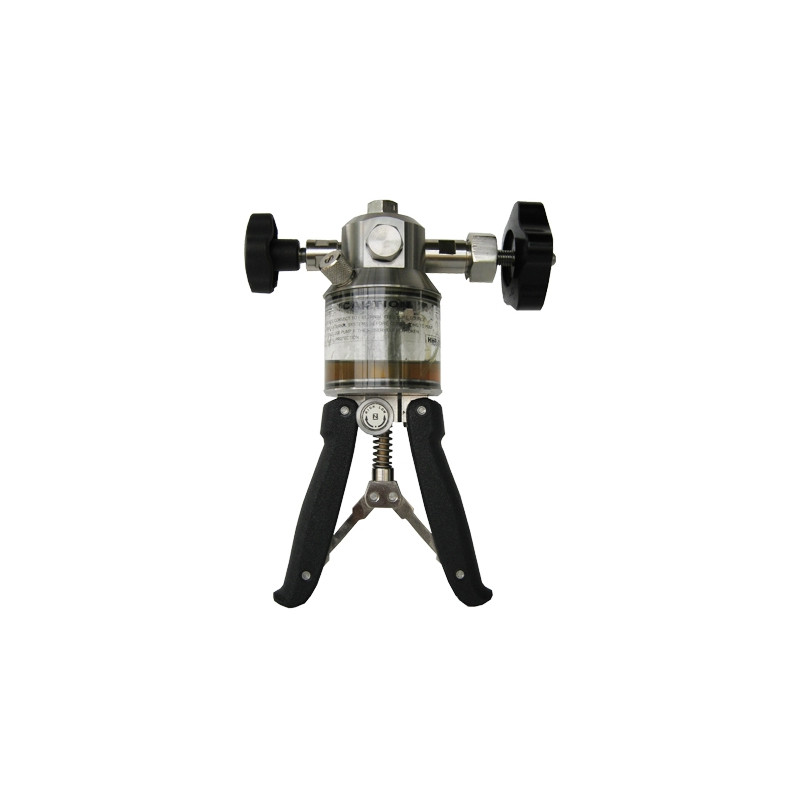

The Prisma instruments PMH700 pneumatic pressure test pump is a manual pressure pump designed with a valve that generates pressures up to 700 Bar, at the touch of the handle. Thanks to its high quality fine adjustment valve, an optimal resolution is obtained. A specially designed shut-off valve generates stable pressure throughout the calibration. Its two quick connectors allow it to easily connect / disconnect measuring instruments, making calibration work efficient and pleasant. The PMH700 comparison pump will become your essential tool for calibrating your pressure instruments.

Reference PMH700

Download

PMH700 pompe de calibration hydraulique 700 bar

Reviews

No customer reviews for the moment.

Write your review

PMH700 Hydraulic Pressure Test Pump 700 bar

Pressure range: 0 to 700 bar
Media: Oil or Water (optional)
Oil tank: 100 ml
Very fine adjustment valve for optimum resolution
Material: Body: Stainless steel ~ Fittings: Stainless steel ~ Seals: Buna-N
Instrument test connections: 1/4 G (F)
Standard connections: 3/8 G (F)
Dimensions: 240 × 185 x 95 mm 1.8 kg
Ease of use, ergonomics & reliable performance
