Pompe de test pneumatique ADT-916 - 40 bar Pneumatic Pressure Test Pump

ADT-916 - Pneumatic Pressure Test Pump 40 bar

Pressure range : 95% of vacuum up to 40 bar
Media : Air
Adjustment resolution: 0,1 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 315×198 ~ Height ×140 (mm) 2.7 kg
User-friendly, robust design and reliable performance

Quantity

En cours d’appro. livraison sous 10j

Garanties sécurité
Politique de livraison
Politique retours

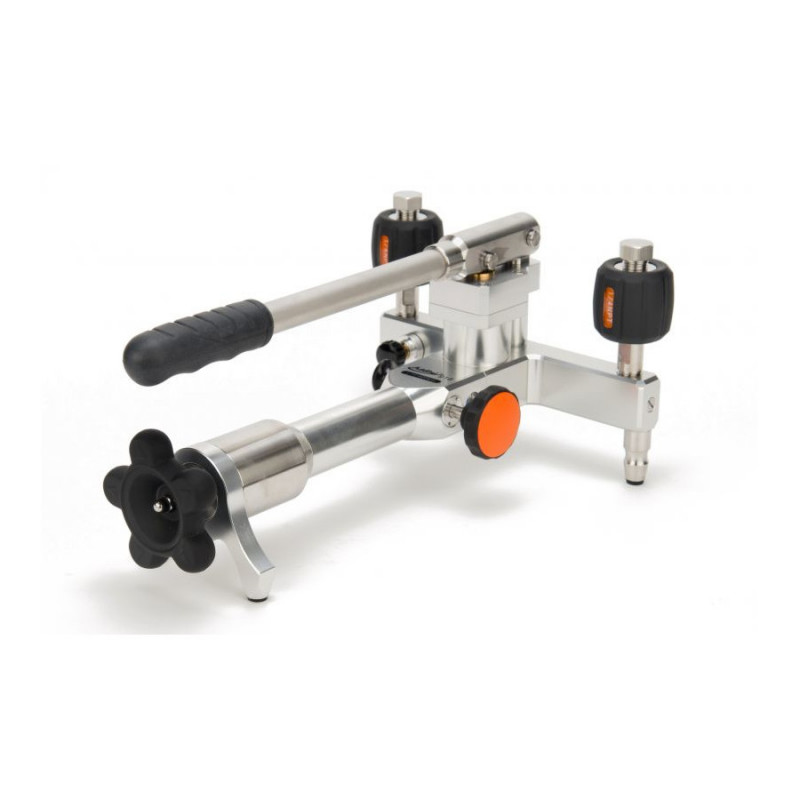

The ADT-916 low Pressure Test Pump is a hand operated pressure pump designed to generate pressure from -0.95 vacuum to 40 bar. A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 0.1 mbar. A specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The ADT-916 is an ideal comparison test pump for pressure instruments calibration.

Reference ADT-916

Download

ADT-916 Pompe de test

Pompe manuelle pneumatique

Reviews

No customer reviews for the moment.

Write your review

ADT-916 - Pneumatic Pressure Test Pump 40 bar

Pressure range : 95% of vacuum up to 40 bar
Media : Air
Adjustment resolution: 0,1 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 315×198 ~ Height ×140 (mm) 2.7 kg
User-friendly, robust design and reliable performance

Write your review

Quality

Title for your review^* Your review^* Enter Captcha^*

^* Required fields
