Pompe de test pneumatique -0.4 à 0.4 bar

ADT-901 Pneumatic Test Pump -0.4 up tp 0.4 bar

Pressure range : -0,4 up to 0,4 bar
Media : Air
Adjustment resolution: 0,001 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 240×130 ~ Height ×130 (mm) 1.5 kg
User-friendly, robust design and reliable performance

Quantity

En cours d’appro. livraison sous 10j

Garanties sécurité
Politique de livraison
Politique retours

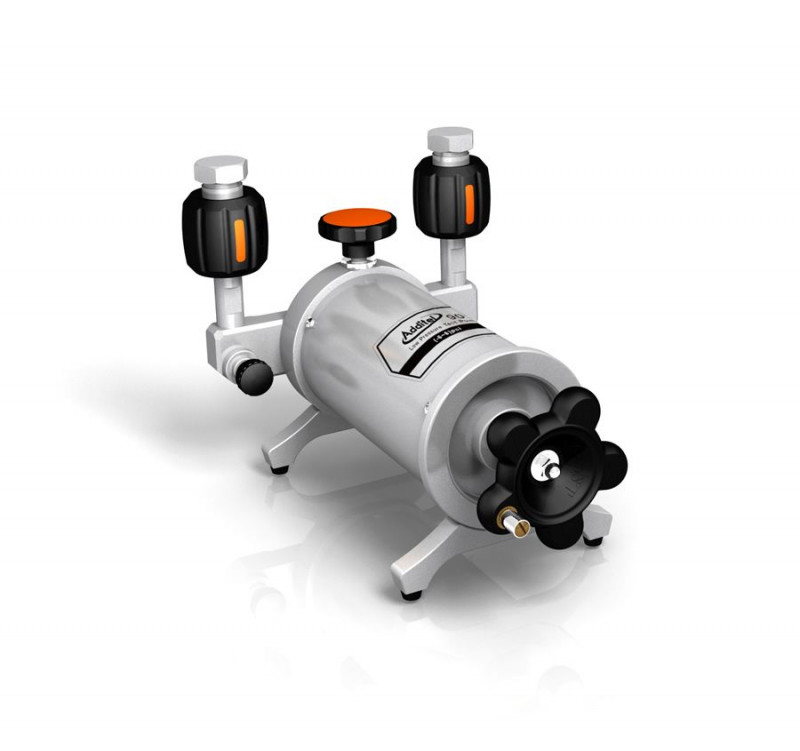

The Prisma ADT-901 low Pressure Test Pump is a hand operated pressure pump designed to generate pressure from -0.4 up to 0.4 bar. A resolution of 0,001 mbar is obtained thanks to its exceptionally high-quality and fine adjustment valve. The ADT-901 is a very stable low pressure calibrator. It makes use of an isothermal bellows chamber which is designed for reducing the possible effects of environmental temperature change. The ADT-901 does not use a check valve and is remarkably stable. Two hand-tight connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The ADT-901 is an ideal comparison test pump for low pressure applications.

Reference ADT-901

Download

ADT-901 Pompe de test

Pompe manuelle pneumatique

Reviews

No customer reviews for the moment.

Write your review

ADT-901 Pneumatic Test Pump -0.4 up tp 0.4 bar

Pressure range : -0,4 up to 0,4 bar
Media : Air
Adjustment resolution: 0,001 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 240×130 ~ Height ×130 (mm) 1.5 kg
User-friendly, robust design and reliable performance

Write your review

Quality

Title for your review^* Your review^* Enter Captcha^*

^* Required fields

16 other products in the same category:

PMH400 Hydraulic Pressure Test Pump 400 bar

Pressure range: 0 to 400 bar
Media: Hydraulic oil / Water (optional)
Oil tank: 100 ml
Very fine adjustment valve for optimum resolution
Connections Standard instruments: 1/4 G F
Connections Test Instruments: 1/4 G F
Hydraulic hose 1 meter with suitable connection
Ergonomics & Ease of use
Robust Design & Stable Performance

€906.00

Quick view

ADT-914 - Pneumatic Pressure Test Pump 25 bar

Pressure range : 95% of vacuum up to 25 bar
Media : Air
Adjustment resolution: 0,1 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 240×120 ~ Height ×130 (mm) 1.5 kg
User-friendly, robust design and reliable performance

Quick view

PMP-0.4 Pneumatic Test Pump +/- 400 mbar

Pressure range: -0.4 to 0.4 bar
Media: Air
Resolution: 0.001 mbar - 0.1 Pa
Material: Body: Stainless steel & aluminum ~ Fittings: Stainless steel ~ Gaskets: Buna-N
Instrument connections: 1 / 4NPT F, 1 / 4BSP F, or M20X1.5 F
Dimensions: Base: 240 × 130 ~ Height × 130 (mm) 1.5 kg
Ease of use, robust design and reliable performance

€1,104.00

Quick view

ADT-919A Pneumatic Pressure Test Pump 140 bar

Pressure range : 95% of vacuum up to 140 bar
Media : Air
Adjustment resolution: 0,1 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 540×270 ~ Height ×178 (mm) 6.5 kg
User-friendly, robust design and reliable performance

Quick view

PMP-160 Pneumatic Test Pump -0.95 to 160 bar

Pressure range : -0,95 bar to 160 bar
Media : Air
Adjustment resolution: 1 KPa - 10 mbar
Connections: 1/2,NPT F, 1/2 BSP F, or M20X1.5 F
Ergonomics & user-friendly
Robust design and reliable performance
No specific maintenance required
Delivered with a standard pressure gauge - ISO17025 Certificate (optional)

€4,104.00

Quick view

PMP25 Pneumatic Test Pump -0.9 to 25 bar

Pressure range: -0.9 to 25 bar
Media: Air
Resolution: 1 mbar
Connections Standard instruments: 3/8 BSP F
Connections Instruments test: 1/4 BSP F
Nylon hose 1 meter with suitable connector
Ergonomics & Ease of use
Robust Design & Stable Performance
No specific maintenance to be expected

€684.00

Quick view

PMP60 Pneumatic Test Pump -0.9 to 60 bar

Pressure range: -0.9 to 60 bar
Media: Air
Resolution: 1 mbar
Connections Standard instruments: 3/8 BSP F
Connections Instruments test: 1/4 BSP F
Nylon hose 1 meter with suitable connector
Ergonomics & Ease of use
Robust Design & Stable Performance
No specific maintenance to be expected

€756.00

Quick view

ADT-918 Pneumatic Pressure Test Pump 100 bar

Pressure range : 95% of vacuum up to 100 bar
Media : Air
Adjustment resolution: 0,1 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 315×198 ~ Height ×140 (mm) 2.6 kg
User-friendly, robust design and reliable performance

Quick view

PMH 700 - Hydraulic Pressure Test Pump 700 bar

Pressure range : 0 up to 700 bar
Media : Oil or water
Adjustment resolution: 200 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/2 BSP F
Dimensions: Base : 384×198 ~ Height ×180 (mm) 4,7 kg
User-friendly, robust design and reliable performance

€1,860.00

Quick view

PMH700 Hydraulic Pressure Test Pump 700 bar

Pressure range: 0 to 700 bar
Media: Oil or Water (optional)
Oil tank: 100 ml
Very fine adjustment valve for optimum resolution
Material: Body: Stainless steel ~ Fittings: Stainless steel ~ Seals: Buna-N
Instrument test connections: 1/4 G (F)
Standard connections: 3/8 G (F)
Dimensions: 240 × 185 x 95 mm 1.8 kg
Ease of use, ergonomics & reliable performance

€1,152.00

Quick view

ADT-936 Hydraulic Pressure Test Pump 1000 bar

Pressure range : 85% of vacuum up to 1000 bar
Media : Oil
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 520×360 ~ Height ×230 (mm) 16 kg
User-friendly, robust design and reliable performance

Quick view

ADT-912 Pneumatic Low Pressure Test Pump 4 bar

Pressure range : 95% of vacuum up to 4 bar
Media : Air
Adjustment resolution: 0,001 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 273×258 ~ Height ×140 (mm) 2.8 kg
User-friendly, robust design and reliable performance

Quick view

PMP10 Pneumatic Test Pump -0.9 to 10 bar

Pressure range: -0.9 to 10 bar
Media: Air
Resolution: 1 mbar
Connections Standard instruments: 3/8 BSP F
Connections Instruments test: 1/4 BSP F
Nylon hose 1 meter with suitable connector
Ergonomics & Ease of use
Robust Design & Stable Performance
No specific maintenance to be expected

€660.00

Quick view

ADT-917 - Pneumatic Pressure Test Pump 70 bar

Pressure range : 95% of vacuum up to 70 bar
Media : Air
Adjustment resolution: 0,1 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 315×198 ~ Height ×140 (mm) 2.6 kg
User-friendly, robust design and reliable performance

Quick view

PMH1000 Hydraulic Pressure Test Pump 1000 bar

Pressure range: 0 to 1000 bar
Media: Oil or Water (optional)
Oil tank: 100 ml
Very fine adjustment valve for optimum resolution
Material: Body: Stainless steel ~ Fittings: Stainless steel ~ Seals: Buna-N
Instrument test connections: 1/4 G (F)
Standard connections: 3/8 G (F)
Dimensions: 240 × 185 x 95 mm 1.8 kg
Ease of use, ergonomics & reliable performance

€1,440.00

Quick view

copy of PMP35 Pneumatic Test Pump -0.9 to 35 bar

Pressure range: -0.9 to 40 bar
Media: Air
Resolution: 1 mbar
Connections Standard instruments: 3/8 BSP F
Connections Instruments test: 1/4 BSP F
Nylon hose 1 meter with suitable connector
Ergonomics & Ease of use
Robust Design & Stable Performance
No specific maintenance to be expected

€708.00

Quick view
