PN:16 bar R250 T50

Power supply: 3.6V lithium battery

Lifespan ≥ 10 years

Fluid: cold water & hot water

Fluid temperature: up to 50°C

Protection: IP68

Installation: Any angle

Communication: RS485 Modbus RTU

MID and ACS approved

CN-BT (Low Temperature):

• Temperature Range: Ambient Temp. +10 °C to 350 °C
• Accuracy: Less than 0.5% F.S. (Min. 1 °C)
• Stability: ± 0.5 °C
• Resolution: 0.1 °C
• Emissivity: 0.98
• Aperture Diameter: 25 mm
• Time to Reach Max Temperature: 45 minutes
• Stabilization Time: 20 minutes (above 75 °C)
• Dimensions (L x W x H) / Weight: 485 x 430 x 190 mm / 11 kg
• Calibration Certification: Factory with ISO17025 traceability included

Applications :

• Compressors
• R.O Plants

Specifications :

• SS316 & Teflon as standard wetted parts
• Electrical Rating : 5A, 250VAC;0.2A,250VDC(res)
• Pressure port : 1/4" BSPM

• * Galvanic isolation
• * No external power supply for configuration
• * Write or read the configuration off-line by just connecting a PC
• * Fault signal on sensor break or short circuit
• * 2 wire technology, 4 to 20mA analogue output
• * High accuracy in total ambient temperature range
• * Customer specific measurement range setting or expanded SETUP

• Communication : e-HART
• Output : 4 to 20mA
• Supply voltage : 7.5 to 45VDC
• Input : RTC, TC, Ohm, mV
• Cold junction : Internal
• Accuracy (Pt100) : <0,2K or 0,08%
• Influence of ambient : Negligible
• Load influence : Negligible
• Power supply influence : Negligible
• Resolution : 0.3uA
• Installation : DIN Rail

• Universal settings with HART-protocol for various input signals
• 2 wire technology, 4 to 20mA analogue output
• High accuracy in total ambient temperature range
• Galvanic isolation
• An internal temperature sensor of active temperature compensation
• Wide voltage supply range
• Customer specific measurement range settings
• Simple and user friendly software
• Multiparametric backlight rotatable LCD display

• * Dimensions:   44mm×22.5mm(Φ×H)
• * Output:   4 to 20mA
• * Supply voltage:   11.5 to 35VDC (non-Ex-Area) 11.5 to 30VDC (Ex-Area)
• * Input:   RTD, TC, Ohm, mV
• * Operation:   HART-protocol
• * Galvanic isolation(In/Out):  2KVAC
• * Installation:  sensor head Form B

Applications :

• Automatisation
• Boiler
• Oil Furnace
• Engines

Products Specifications :

• Setpoint repeatability : +/- 2% of FSR
• Switch output : NO,NC,SPDT contacts
• Enclosure : Rolled aluminium
• Storage temperature :-20°C to +80°C
• Tmax : 150°C

• Model : CTC-1200
• Working range : 300 °C to 1200 °C
• Resolution : 1 °C
• Accuracy : ± 2 °C
• Stability : ± 0.5 °C
• Stabilization time : 15 minutes
• Temperature display : °C / °F switchable
• Well diameter : 26 mm
• Immersion depth : 105 mm
• Heating time (ambient to max.) : Approximately 60 minutes
• Cooling time : Approximately 45 minutes (with forced air cooling)
• Pressostat test : Suitable
• Thermowell diameter : 8 mm
• Power supply / consumption : 230V AC, 50 Hz / 115V AC, 60 Hz - 700 W - switchable
• Instrument dimensions (L x W x H) : 160 x 365 x 450 mm
• Instrument weight : 15 Kg

Measurement capacity :

• Thermocouples : ISA Types J, K, R, S, N
• RTD : Pt100 IEC Std.
• mA : 0 to 25 mA
• mV : 0 to 100 / 1000 mV
• Volt : 0 to 10 V
• Resistance : 0 to 500Ω / 3.5 KΩ

• Communication : e-HART
• Output : 4 to 20mA
• Supply voltage : 7.5 to 45VDC
• Input : RTC, TC, Ohm, mV
• Cold junction : Internal
• Accuracy (Pt100) : <0,2K or 0,08%
• Influence of ambient : Negligible
• Load influence : Negligible
• Power supply influence : Negligible
• Resolution : 0.3uA
• Galvanic isolation (In/Out) : 2KVAC
• Installation : DIN Rail

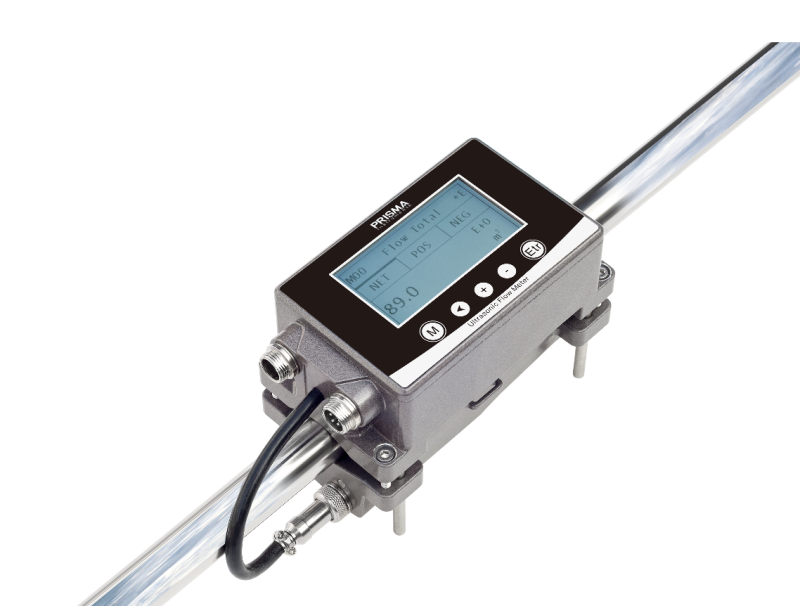

For all clear, non-diphasic liquids and for all types of pipes from DN20 to DN1200:

• Accuracy of measurement 1 % F.S.
• Communications : 4~20 mA & RS485 Modbus
• Programmable data logger 16 GB SD card
• 16 hours battery life
• Non-invasive transducers Stainless steel IP68
• Mounting rails for optimal measurement
• 2x TT02 Transducers IP68 DN20 to DN1200
  -40 °C ~ 80°C
• Mounting rails with strip and clamps
• Standard cable length: 5 meters
• Optional energy meter
