• Storage temperature ; Atmospheric temperature
• Operating ambient temperature : -20°C to +60° C
• Media Temp : for rubber diaphragms 80 degree C max, higher with metal diaphragms
• Can be offered for higher temperatures with other capsule combinaisons
• Setpoint repeatability : ± 1% of FSR
• Enclosure : Die cast aluminium to IP 66
• Switch output : SPDT, DPDT, hermetically sealed, gold plated contacts
• Process connection : 1/4 "BSP standard, other options like flanges, triclover clamps, diaphragm seals available

CN-BT (Low Temperature):

• Temperature Range: Ambient Temp. +10 °C to 350 °C
• Accuracy: Less than 0.5% F.S. (Min. 1 °C)
• Stability: ± 0.5 °C
• Resolution: 0.1 °C
• Emissivity: 0.98
• Aperture Diameter: 25 mm
• Time to Reach Max Temperature: 45 minutes
• Stabilization Time: 20 minutes (above 75 °C)
• Dimensions (L x W x H) / Weight: 485 x 430 x 190 mm / 11 kg
• Calibration Certification: Factory with ISO17025 traceability included

Applications :

• Automatisation
• Boiler
• Oil Furnace
• Engines

Products Specifications :

• Setpoint repeatability : +/- 2% of FSR
• Switch output : NO,NC,SPDT contacts
• Enclosure : Rolled aluminium
• Storage temperature :-20°C to +80°C
• Tmax : 150°C

• Storage temperature ; Atmospheric temperature
• Operating ambient temperature : -20°C to +60° C
• Media Temp : for rubber diaphragms 80 degree C max, higher with metal diaphragms
• Can be offered for higher temperatures with other capsule combinaisons
• Setpoint repeatability : ± 1% of FSR
• Enclosure : Die cast aluminium to IP 66
• Switch output : SPDT, DPDT, hermetically sealed, gold plated contacts
• Process connection : 1/4 "BSP standard, other options like flanges, triclover clamps, diaphragm seals available

PN:16 bar R250 T50

Power supply: 3.6V lithium battery

Lifespan ≥ 10 years

Fluid: cold water & hot water

Fluid temperature: up to 50°C

Protection: IP68

Installation: Any angle

Communication: RS485 Modbus RTU

MID and ACS approved

*Output: 4 to 20mA

*Supply voltage: 7.5 to 45VDC

*Input: RTD, TC, Ohm, mV

*Accuracy(Pt100): <0.2K or 0.08%

*Cold junction: Internal

*Galvanic isolation: 2 KVAC(In/Out)

*Influence of ambient: Negligible

*Load influence: Negligible

*Power supply influence: Negligible

*Resolution: 0.3uA

*Operation: HART-protocol

*Installation: sensor head Form B

*Dimensions: 44mm×24mm(Φ×H)

*Weight: approx. 35g

CN-BT (Low Temperature):

• Temperature Range: Ambient Temp. +10 °C to 350 °C
• Accuracy: Less than 0.5% F.S. (Min. 1 °C)
• Stability: ± 0.5 °C
• Resolution: 0.1 °C
• Emissivity: 0.98
• Aperture Diameter: 25 mm
• Time to Reach Max Temperature: 45 minutes
• Stabilization Time: 20 minutes (above 75 °C)
• Dimensions (L x W x H) / Weight: 485 x 430 x 190 mm / 11 kg
• Calibration Certification: Factory with ISO17025 traceability included

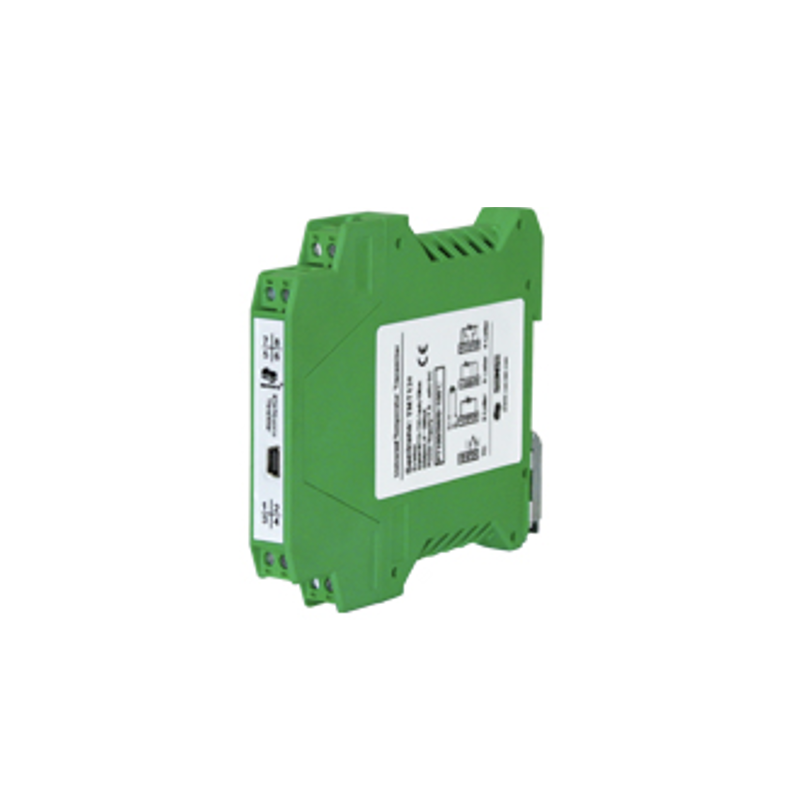

• Communication : e-HART
• Output : 4 to 20mA
• Supply voltage : 7.5 to 45VDC
• Input : RTC, TC, Ohm, mV
• Cold junction : Internal
• Accuracy (Pt100) : <0,2K or 0,08%
• Influence of ambient : Negligible
• Load influence : Negligible
• Power supply influence : Negligible
• Resolution : 0.3uA
• Galvanic isolation (In/Out) : 2KVAC
• Installation : DIN Rail

For all clear, non biphasic liquids and all types of pipes from DN20 to DN 1200 :

• Measurement accuracy 1% F.S
• Communications : 4~20 mA & RS485 Modbus
• Programmable data logger 16 GB SD card
• Battery 16 hours autonomy
• Non-invasive transducers Stainless steel IP68
• Mounting rails for optimal measurement
• Energy metering included
• 2x TT02 IP68 transducers
• -40 °C ~ 80 °C (130°C optional)
• Suitable for pipes DN 20 mm to DN 1200 mm
• Mounting rails with strip and clamps
• Standard cable length: 5 meters
• 2x non-intrusive PT100 IP68 temperature sensors
• Measurement of thermal & cooling energy
