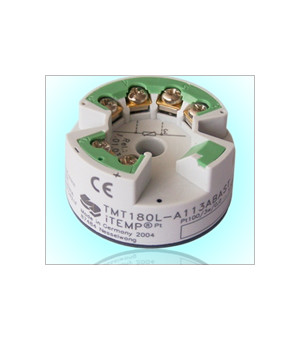

• Dimensions: 44mm×22.5mm(Φ×H)
• Output: 4 to 20mA
• Supply voltage: 8 to 35VDC (non-Ex-Area)
•                              8 to 30VDC (Ex-Area)
• Input: PT100
• Installation: sensor head Form B

• Communication : e-HART
• Output : 4 to 20mA
• Supply voltage : 7.5 to 45VDC
• Input : RTC, TC, Ohm, mV
• Cold junction : Internal
• Accuracy (Pt100) : <0,2K or 0,08%
• Influence of ambient : Negligible
• Load influence : Negligible
• Power supply influence : Negligible
• Resolution : 0.3uA
• Galvanic isolation (In/Out) : 2KVAC
• Installation : DIN Rail

• Universal input (RTD, thermocouple, Ohm, mV)
• 1.5 KV RMS Isolation between Input & Output
• Linearized Output
• Highly Accurate
• Fully Programmable for Input type & Range
• Fast Response time: <500 ms
• Digital Filter
• Windows mTRAN software for Configuration, Calibration & Monitoring
• Reverse polarity protection
• Direct/Reverse output
• Sensor break detection
• Loop/Aux Powered models

• Rugged weather proof enclosure with Exproof enclosure as an option
• Available in Wall and Duct mounting versions.
• Three variants.
• Measuring Range: 0-100% RH in models, suitable formmany applications
• Class-A RTD Pt 100 sensor used for temperature measurement
• Linearised analog 4-20mA signal output (2wire loop powered)
• Replaceable humidity sensor assembly
• Capacitance based sensing.
• High Accuracy
• Excellent long-term stability

• Communication : e-HART
• Output : 4 to 20mA
• Supply voltage : 7.5 to 45VDC
• Input : RTC, TC, Ohm, mV
• Cold junction : Internal
• Accuracy (Pt100) : <0,2K or 0,08%
• Influence of ambient : Negligible
• Load influence : Negligible
• Power supply influence : Negligible
• Resolution : 0.3uA
• Galvanic isolation (In/Out) : 2KVAC
• Installation : DIN Rail

• Output: 4 to 20mA
• Supply voltage:  7.5 to 45VDC
• Input:  RTD, TC, Ohm, mV
• Cold junction:  Internal
• Influence of ambient:  Negligible
• Load influence: Negligible
• Power supply influence:  Negligible
• Resolution:  0.3uA
• Installation:  sensor head Form B
• Operation:  PC-programmable

• Input: RTD
• Type:pt100
• Accuracy:0.2K or 0.1% of spanPerformance characteristics
• Response time: 1s
• Reference condition : Calibration temperature:+23°C(73.4K)±5K
• Long term stability:≤0.05%year
• Switch on delay:≤5s
• Influence of ambient: Negligible
• Load influence: Negligible
• Power supply influence:Negligible
• Resolution:1μA·Storage temperature
• Ambient temperature limits:40 to +85 °C (-40 to 185 °F)
• Storage temperature: -40 to +100 °C (-40 to 212 °F)
• Condensation: Allowable
• Degree of protection:IP00/IP66 installed
• Shock and vibration resistance:4g/2 to150 Hz as per IEC 60 068-26
• Electromagnetic compatibility (EMC) : Interference immunity and interference emission
• GB/T17626.2-1998), compliance with IEC 61000-4-3:1995

• Communication : e-HART
• Output : 4 to 20mA
• Supply voltage : 7.5 to 45VDC
• Input : RTC, TC, Ohm, mV
• Cold junction : Internal
• Accuracy (Pt100) : <0,2K or 0,08%
• Influence of ambient : Negligible
• Load influence : Negligible
• Power supply influence : Negligible
• Resolution : 0.3uA
• Installation : DIN Rail

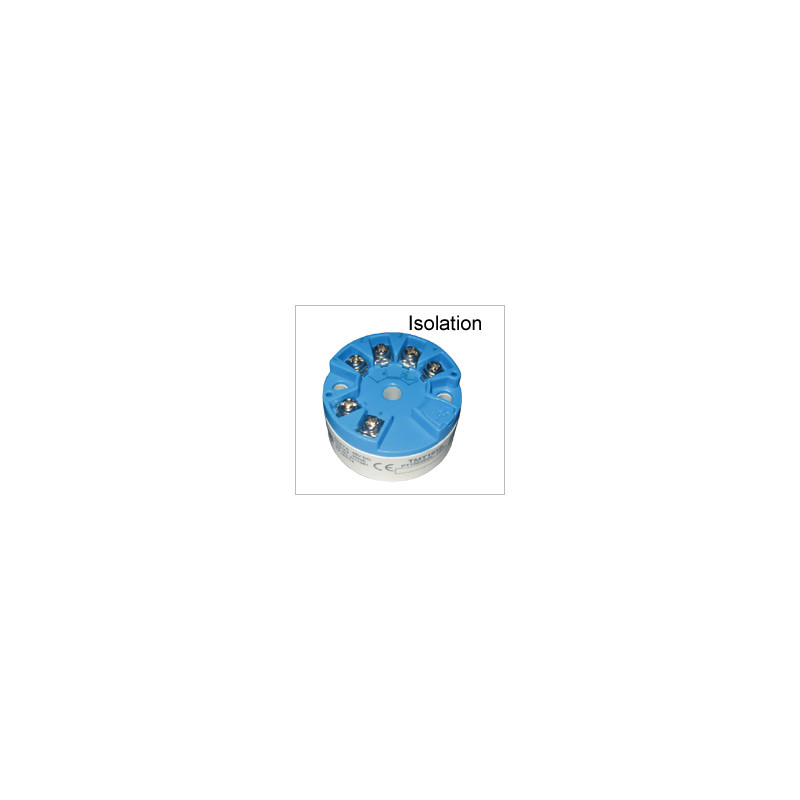

• * Galvanic isolation
• * No external power supply for configuration
• * Write or read the configuration off-line by just connecting a PC
• * Fault signal on sensor break or short circuit
• * 2 wire technology, 4 to 20mA analogue output
• * High accuracy in total ambient temperature range
• * Customer specific measurement range setting or expanded SETUP

• * Dimensions:   44mm×22.5mm(Φ×H)
• * Output:   4 to 20mA
• * Supply voltage:   11.5 to 35VDC (non-Ex-Area) 11.5 to 30VDC (Ex-Area)
• * Input:   RTD, TC, Ohm, mV
• * Operation:   HART-protocol
• * Galvanic isolation(In/Out):  2KVAC
• * Installation:  sensor head Form B

• Universal input (RTD, Thermocouple, Ohm, mV)
• Available in below options :
  TT7S10-D: Din Rail mount with 3″, 4 digit LED display
  TT7S10-XP: Wall or 2″ Pipe mount Ex-proof Transmitter with touch sense keys
• 0.56″, 4 digit LED display in Single Compartment
• 0.39″, 4 digit LED display in Dual Compartment
• 1.5 KV RMS Isolation between Input & Output Linearized Output
• Highly Accurate
• Fully Programmable for Input type & Range
• Digital Filter
• Easy configuration using keys and display
• Windows mTRAN software for Configuration, Calibration & Monitoring
• Reverse Loop polarity protection
• Direct / Reverse output
• Sensor break detection

• Universally progammable with HART-protocol for various input signals
• Two-wire technology, analogue output 4 to 20mA
• Highly accurate in entire operating temperature range
• Wide voltage supply range
• Customer specific measurement range settings
• Simple and user friendly software
• Multiparametric backlight rotatable LCD display

• Universal settings with HART-protocol for various input signals
• 2 wire technology, 4 to 20mA analogue output
• High accuracy in total ambient temperature range
• Galvanic isolation
• An internal temperature sensor of active temperature compensation
• Wide voltage supply range
• Customer specific measurement range settings
• Simple and user friendly software
• Multiparametric backlight rotatable LCD display

*Output: 4 to 20mA

*Supply voltage: 7.5 to 45VDC

*Input: RTD, TC, Ohm, mV

*Accuracy(Pt100): <0.2K or 0.08%

*Cold junction: Internal

*Galvanic isolation: 2 KVAC(In/Out)

*Influence of ambient: Negligible

*Load influence: Negligible

*Power supply influence: Negligible

*Resolution: 0.3uA

*Operation: HART-protocol

*Installation: sensor head Form B

*Dimensions: 44mm×24mm(Φ×H)

*Weight: approx. 35g
