Applications :

• Compressors
• R.O Plants

Specifications :

• SS316 & Teflon as standard wetted parts
• Electrical Rating : 5A, 250VAC;0.2A,250VDC(res)
• Pressure port : 1/4" BSPM

CN-BT (Low Temperature):

• Temperature Range: Ambient Temp. +10 °C to 350 °C
• Accuracy: Less than 0.5% F.S. (Min. 1 °C)
• Stability: ± 0.5 °C
• Resolution: 0.1 °C
• Emissivity: 0.98
• Aperture Diameter: 25 mm
• Time to Reach Max Temperature: 45 minutes
• Stabilization Time: 20 minutes (above 75 °C)
• Dimensions (L x W x H) / Weight: 485 x 430 x 190 mm / 11 kg
• Calibration Certification: Factory with ISO17025 traceability included

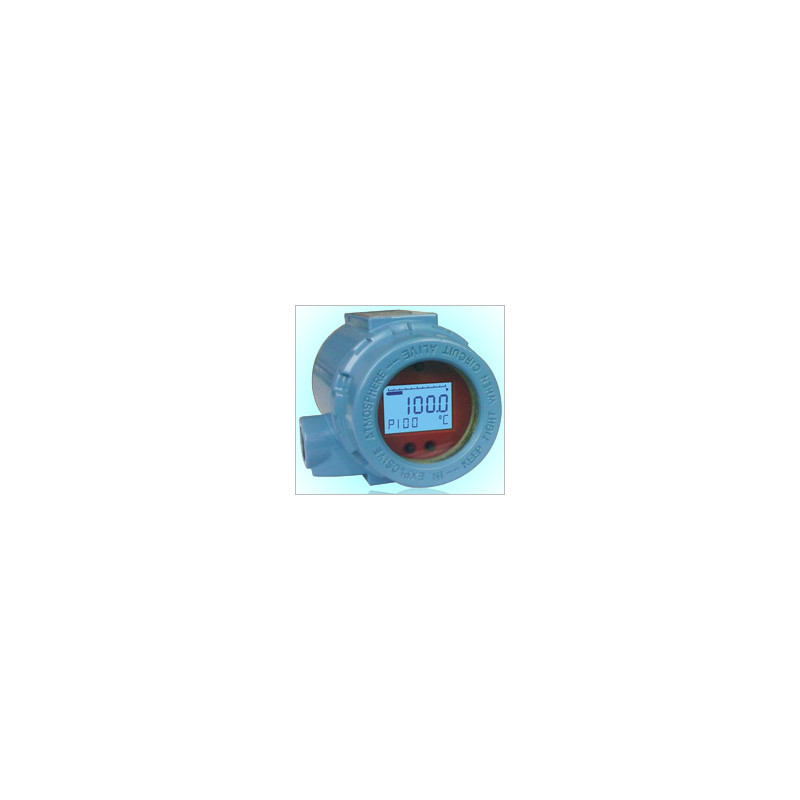

• Communication : e-HART
• Output : 4 to 20mA
• Supply voltage : 7.5 to 45VDC
• Input : RTC, TC, Ohm, mV
• Cold junction : Internal
• Accuracy (Pt100) : <0,2K or 0,08%
• Influence of ambient : Negligible
• Load influence : Negligible
• Power supply influence : Negligible
• Resolution : 0.3uA
• Galvanic isolation (In/Out) : 2KVAC
• Installation : DIN Rail

• Dimensions: 44mm×22.5mm(Φ×H)
• Output: 4 to 20mA
• Supply voltage: 8 to 35VDC (non-Ex-Area)
•                              8 to 30VDC (Ex-Area)
• Input: PT100
• Installation: sensor head Form B

CN-BT (Low Temperature):

• Temperature Range: Ambient Temp. +10 °C to 350 °C
• Accuracy: Less than 0.5% F.S. (Min. 1 °C)
• Stability: ± 0.5 °C
• Resolution: 0.1 °C
• Emissivity: 0.98
• Aperture Diameter: 25 mm
• Time to Reach Max Temperature: 45 minutes
• Stabilization Time: 20 minutes (above 75 °C)
• Dimensions (L x W x H) / Weight: 485 x 430 x 190 mm / 11 kg
• Calibration Certification: Factory with ISO17025 traceability included

• Storage temperature ; Atmospheric temperature
• Operating ambient temperature : -20°C to +60° C
• Media Temp : for rubber diaphragms 80 degree C max, higher with metal diaphragms
• Can be offered for higher temperatures with other capsule combinaisons
• Setpoint repeatability : ± 1% of FSR
• Enclosure : Die cast aluminium to IP 66
• Switch output : SPDT, DPDT, hermetically sealed, gold plated contacts
• Process connection : 1/4 "BSP standard, other options like flanges, triclover clamps, diaphragm seals available

CN-HT (High Temperature):

• Temperature Range: 500 °C to 1200 °C
• Accuracy: Less than 0.5% F.S. (Min. 3 °C)
• Stability: ± 0.5 °C
• Resolution: 1 °C
• Emissivity: 0.98
• Aperture Diameter: 25 mm
• Time to Reach Max Temperature: 60 minutes
• Stabilization Time: 20 minutes (above 75 °C)
• Dimensions (L x W x H) / Weight: 485 x 430 x 190 mm / 11 kg
• Calibration Certification: Factory with ISO17025 traceability included

CN-DT (Duo – Dual Cavities):

• Cavity 1: +50 °C to 300 °C
• Cavity 2: +250 °C to 600 °C
• Accuracy: Less than 0.5% F.S. (Cavity 1 Min. 1 °C / Cavity 2 Min. 2 °C)
• Stability: ± 0.5 °C
• Resolution: 1 °C
• Emissivity: 0.98
• Aperture Diameter: 25 mm
• Time to Reach Max Temperature: 45 minutes
• Stabilization Time: 30 minutes (above 75 °C)
• Dimensions (L x W x H) / Weight: 450 x 410 x 190 mm / 14 kg
• Calibration Certification: Factory with ISO17025 traceability included

• Storage temperature ; Atmospheric temperature
• Operating ambient temperature : -20°C to +60° C
• Media Temp : for rubber diaphragms 80 degree C max, higher with metal diaphragms
• Can be offered for higher temperatures with other capsule combinaisons
• Setpoint repeatability : ± 1% of FSR
• Enclosure : Die cast aluminium to IP 66
• Switch output : SPDT, DPDT, hermetically sealed, gold plated contacts
• Process connection : 1/4 "BSP standard, other options like flanges, triclover clamps, diaphragm seals available

• Communication : e-HART
• Output : 4 to 20mA
• Supply voltage : 7.5 to 45VDC
• Input : RTC, TC, Ohm, mV
• Cold junction : Internal
• Accuracy (Pt100) : <0,2K or 0,08%
• Influence of ambient : Negligible
• Load influence : Negligible
• Power supply influence : Negligible
• Resolution : 0.3uA
• Galvanic isolation (In/Out) : 2KVAC
• Installation : DIN Rail

• Range: 0-20 mg/L, 0-200%, 0-400 hPa
• Resolution: 0.01 mg/L, 0.1%, 1 hPa
• Output signal: 4 ~ 20 mA; Relay; RS485
• Power supply: AC220V±10%; 50Hz/60Hz
• Communication protocol: MODBUS-RTU standard (customizable)
• Operating temperature: 0~60 °C
