Pompe de test pneumatique 200 bar Pneumatic Pressure Test Pump 200 bar

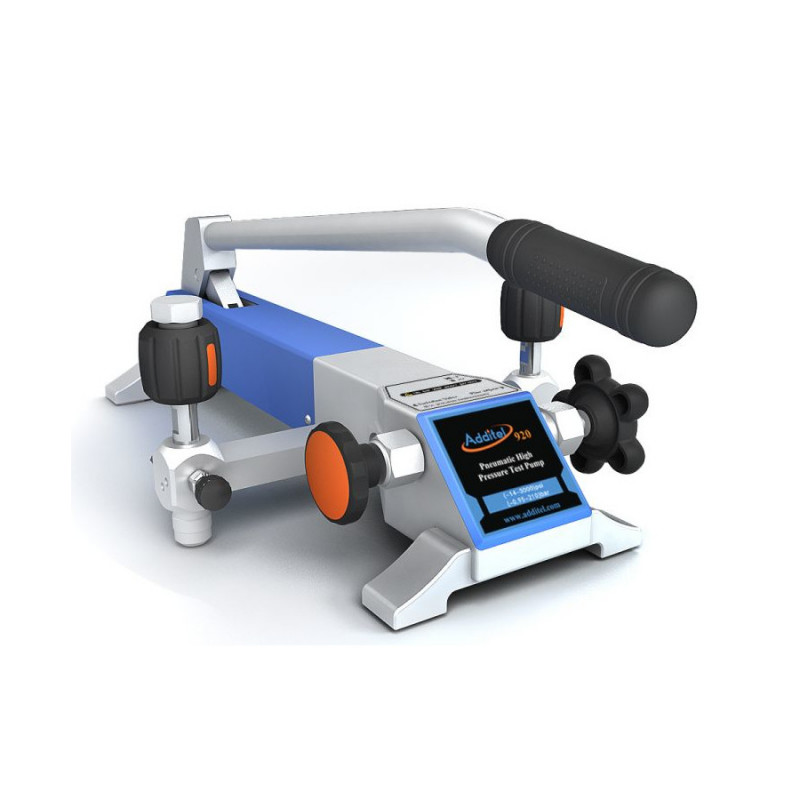

ADT-920 Pneumatic Pressure Test Pump 200 bar

Pressure range : 95% of vacuum up to 200 bar
Media : Air
Adjustment resolution: 0,1 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 540×270 ~ Height ×178 (mm) 6,5 kg
User-friendly, robust design and reliable performance

Quantity

En cours d’appro. livraison sous 10j

Garanties sécurité
Politique de livraison
Politique retours

The ADT-920 Low Pressure Test Pump is a hand operated pressure pump designed to generate pressure from -0.95 vacuum to 200 bar. A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 0.1 mbar. A specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance. The residual liquid in the pump introduced from the devices under test will be collected and then pushed out during pressure release. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The ADT-920 is an ideal comparison test pump for pressure instruments calibration.

Reference ADT-920

Download

ADT-920 Pompe de test

Pompe de test pneumatique

Reviews

No customer reviews for the moment.

Write your review

ADT-920 Pneumatic Pressure Test Pump 200 bar

Pressure range : 95% of vacuum up to 200 bar
Media : Air
Adjustment resolution: 0,1 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 540×270 ~ Height ×178 (mm) 6,5 kg
User-friendly, robust design and reliable performance

Write your review

Quality

Title for your review^* Your review^* Enter Captcha^*

^* Required fields

16 other products in the same category:

ADT-925 - Hydraulic Pressure Test Pump 400 bar

Pressure range : 85% of vacuum up to 400 bar
Media : Oil and Water
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 240×140 ~ Height ×120 (mm) 1,7kg
User-friendly, robust design and reliable performance

Quick view

PMH700 Hydraulic Pressure Test Pump 700 bar

Pressure range: 0 to 700 bar
Media: Oil or Water (optional)
Oil tank: 100 ml
Very fine adjustment valve for optimum resolution
Material: Body: Stainless steel ~ Fittings: Stainless steel ~ Seals: Buna-N
Instrument test connections: 1/4 G (F)
Standard connections: 3/8 G (F)
Dimensions: 240 × 185 x 95 mm 1.8 kg
Ease of use, ergonomics & reliable performance

€1,152.00

Quick view

PMP25 Pneumatic Test Pump -0.9 to 25 bar

Pressure range: -0.9 to 25 bar
Media: Air
Resolution: 1 mbar
Connections Standard instruments: 3/8 BSP F
Connections Instruments test: 1/4 BSP F
Nylon hose 1 meter with suitable connector
Ergonomics & Ease of use
Robust Design & Stable Performance
No specific maintenance to be expected

€684.00

Quick view

ADT-912 Pneumatic Low Pressure Test Pump 4 bar

Pressure range : 95% of vacuum up to 4 bar
Media : Air
Adjustment resolution: 0,001 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 273×258 ~ Height ×140 (mm) 2.8 kg
User-friendly, robust design and reliable performance

Quick view

PMH-2500 - Hydraulic Pressure Test Pump 2500 bar

Pressure range: 0 to 2500 bar
Media: Mineral oil
Resolution: 10 mbar ~ 1 kPa
Material: Body: Stainless steel & aluminum ~ Fittings: Stainless steel ~ Gaskets: Buna-N
Instrument connections: 3x 1/2 G F ports
Dimensions: Base: 450 × 380 ~ Height × 250 mm
Weight: 17 kg
Ease of use, robust design and reliable performance

€4,260.00

Quick view

PMP-160 Pneumatic Test Pump -0.95 to 160 bar

Pressure range : -0,95 bar to 160 bar
Media : Air
Adjustment resolution: 1 KPa - 10 mbar
Connections: 1/2,NPT F, 1/2 BSP F, or M20X1.5 F
Ergonomics & user-friendly
Robust design and reliable performance
No specific maintenance required
Delivered with a standard pressure gauge - ISO17025 Certificate (optional)

€4,104.00

Quick view

PMH400 Hydraulic Pressure Test Pump 400 bar

Pressure range: 0 to 400 bar
Media: Hydraulic oil / Water (optional)
Oil tank: 100 ml
Very fine adjustment valve for optimum resolution
Connections Standard instruments: 1/4 G F
Connections Test Instruments: 1/4 G F
Hydraulic hose 1 meter with suitable connection
Ergonomics & Ease of use
Robust Design & Stable Performance

€906.00

Quick view

PMP-100 Pneumatic Test Pump -0.95 to 100 bar

Pressure range : 95% of vacuum up to 100 bar
Media : Air
Adjustment resolution: 10 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/2 NPT F, 1/2 BSP F, or M20X1.5 F
Dimensions: Base : 500 ×325 ~ Height ×135 (mm) 6.4 kg
User-friendly, robust design and reliable performance

€2,712.00

Quick view

PMH-1000 Hydraulic Pressure Test Pump 1000 bar Water/oil

Pressure range: 0 to 1000 bar
Media: Mineral oil
Resolution: 10 mbar ~ 1 kPa
Material: Body: Stainless steel & aluminum ~ Fittings: Stainless steel ~ Gaskets: Buna-N
Instrument connections: 3x 1/2 G F ports
Dimensions: Base: 410 × 310 ~ Height × 120 mm
Weight: 11 kg
Ease of use, robust design and reliable performance

€3,180.00

Quick view

PMH200 Hydraulic Pressure Test Pump 200 bar

Pressure range: 0 to 200 bar
Media: Hydraulic oil / Water (optional)
Oil tank: 100 ml
Very fine adjustment valve for optimum resolution
Connections Standard instruments: 1/4 G F
Connections Test Instruments: 1/4 G F
Hydraulic hose 1 meter with suitable connection
Ergonomics & Ease of use
Robust Design & Stable Performance

€858.00

Quick view

PMH1000 Hydraulic Pressure Test Pump 1000 bar

Pressure range: 0 to 1000 bar
Media: Oil or Water (optional)
Oil tank: 100 ml
Very fine adjustment valve for optimum resolution
Material: Body: Stainless steel ~ Fittings: Stainless steel ~ Seals: Buna-N
Instrument test connections: 1/4 G (F)
Standard connections: 3/8 G (F)
Dimensions: 240 × 185 x 95 mm 1.8 kg
Ease of use, ergonomics & reliable performance

€1,440.00

Quick view

copy of PMP35 Pneumatic Test Pump -0.9 to 35 bar

Pressure range: -0.9 to 40 bar
Media: Air
Resolution: 1 mbar
Connections Standard instruments: 3/8 BSP F
Connections Instruments test: 1/4 BSP F
Nylon hose 1 meter with suitable connector
Ergonomics & Ease of use
Robust Design & Stable Performance
No specific maintenance to be expected

€708.00

Quick view

ADT-918 Pneumatic Pressure Test Pump 100 bar

Pressure range : 95% of vacuum up to 100 bar
Media : Air
Adjustment resolution: 0,1 mbar
Material : Body: SS & aluminum ~ Ram/adapters: SS ~ Seals: Buna-N
Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
Dimensions: Base : 315×198 ~ Height ×140 (mm) 2.6 kg
User-friendly, robust design and reliable performance

Quick view

PMP35 Pneumatic Test Pump -0.9 to 35 bar

Pressure range: -0.9 to 35 bar
Media: Air
Resolution: 1 mbar
Connections Standard instruments: 3/8 BSP F
Connections Instruments test: 1/4 BSP F
Nylon hose 1 meter with suitable connector
Ergonomics & Ease of use
Robust Design & Stable Performance
No specific maintenance to be expected

€708.00

Quick view

PMP60 Pneumatic Test Pump -0.9 to 60 bar

Pressure range: -0.9 to 60 bar
Media: Air
Resolution: 1 mbar
Connections Standard instruments: 3/8 BSP F
Connections Instruments test: 1/4 BSP F
Nylon hose 1 meter with suitable connector
Ergonomics & Ease of use
Robust Design & Stable Performance
No specific maintenance to be expected

€756.00

Quick view

PMP-0.4 Pneumatic Test Pump +/- 400 mbar

Pressure range: -0.4 to 0.4 bar
Media: Air
Resolution: 0.001 mbar - 0.1 Pa
Material: Body: Stainless steel & aluminum ~ Fittings: Stainless steel ~ Gaskets: Buna-N
Instrument connections: 1 / 4NPT F, 1 / 4BSP F, or M20X1.5 F
Dimensions: Base: 240 × 130 ~ Height × 130 (mm) 1.5 kg
Ease of use, robust design and reliable performance

€1,104.00
