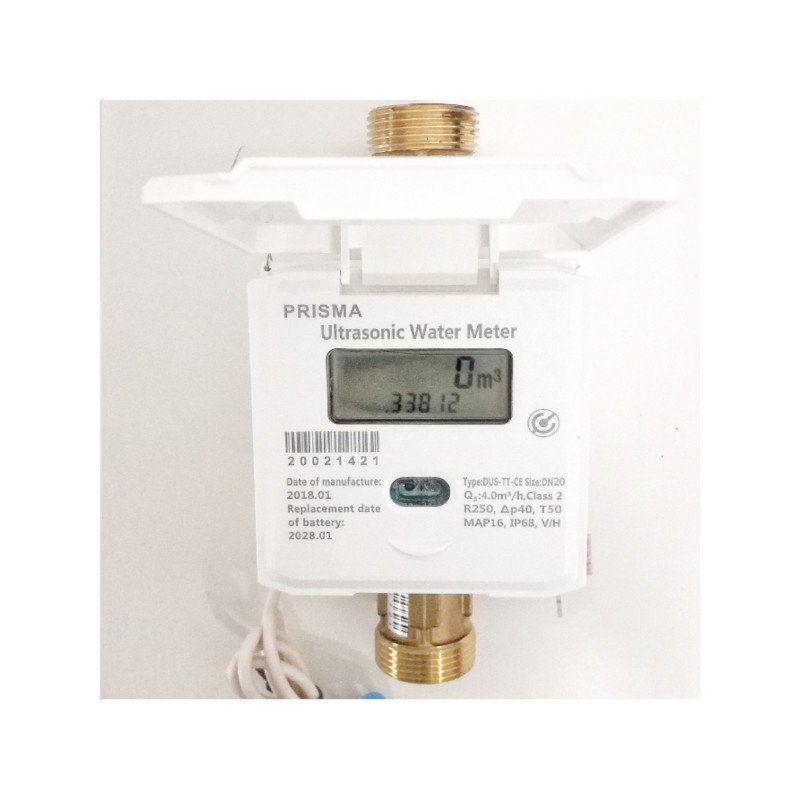

DUS-TT-CE Residential ultrasonic water meter
- PN: 16 bar
- Power supply: 3.6V lithium battery
- Service life ≥ 10 years
- Fluid: water
- Protection: IP68
- Installation: Any angle
- Communication: RS485 Modbus or M-Bus
- Meets drinking water requirements
- MID approved
-
Garanties sécurité
-
Politique de livraison
-
Politique retours
The DUS-TT-CE is a new generation ultrasonic water meter, used for measuring cold water consumption up to 50 ° C (70 ° C optional). It is used in the commercial, industrial and residential fields. It is based on static ultrasonic technology, with no moving parts, which guarantees stable measurement over time with reliable data recording. Thanks to its long-lasting battery (more than 10 years) and its varied communication interface (RS485, modbus, Mbus, optics, etc.), the DUS-TT-CE ultrasonic water meter is the ideal equipment for your metering. of water.
DUS-TT-CE
New product
Download
Reviews
No customer reviews for the moment.
6 other products in the same category:
PN:16 bar R250 T50
Power supply: 3.6V lithium battery
Lifespan ≥ 10 years
Fluid: cold water & hot water
Fluid temperature: up to 50°C
Protection: IP68
Installation: Any angle
Communication: RS485 Modbus RTU
MID and ACS approved
€234.00
Price
- Accuracy: 1%
- Non-intrusive transducers
- DN20 to DN6000 ~ depending on type of transducers
- Rechargeable battery, Autonomy 50 hours
- Data logger
- Communication: RS-485 Modbus RTU
- Output: 4-20mA
- IP67 flowmeter ~ IP68 transducers
- Compact & Robust
- Dimensions: 270 × 215 × 175 mm ~ Weight: 3 kg
- 2x Non-intrusive transducers -35 ° C to 85 ° C
- Other output (optional): Pulse, Relay
- Energy meter option
€3,168.00
Price
- Accuracy: 1%
- Non-intrusive transducers
- DN15 to DN6000 ~ depending on type of transducers
- Energy meter option: thermal and cooling energy
- Communication: RS-485 Modbus RTU
- Outputs: 1x 4-20mA ~ 1x 4-20mA ~ 1x Pulse ~ 1x Relay
- Inputs: 3 x 4-20mA
- Integrated data logger: SD card slot
- IP67 flowmeter ~ IP68 transducers
- Compact & Robust
- Dimensions: 13 cm × 15 cm × 8 cm ~ Weight: 1 kg
- 2x High temperature non-intrusive transducers -30 ° C to 160 ° C
- FREE mounting rail with transducers
€1,878.00
Price
- High measurement accuracy: Accuracy: 0.5%
- Wide measuring range: DN15 to DN6000
- Energy meter: Measurement of thermal and cooling energy
- Wide temperature range: Fluid from -30 ° C to 160 ° C
- Multiple communication interface as standard:
- Outputs: RS-485 Modbus RTU ~ 1x 4-20 mA ~ 1x Pulse ~ 1x Relay
- Inputs: 3x 4-20mA (acquisition of temperature, pressure, level signals, etc.)
- Multiple materials and pressures available:
- Carbon steel, 304 stainless steel, 316 stainless steel, 1.0 Mpa, 1.6 Mpa, 2.5 Mpa
- IP68 protection - Fully waterproof: Does not fear splashing water or humid environments
- Waterproof keyboard: 4 keys - settings and multiple functions
- PN: 16 bar
- Power supply: 3.6V lithium battery
- Service life ≥ 10 years
- Fluid: water
- Protection: IP68
- Installation: Any angle
- Communication: RS485 Modbus or M-Bus
- Meets drinking water requirements
- MID approved
