DUS-TT-V portable ultrasonic flow meter battery 50 hours
- Accuracy: 1%
- Non-intrusive transducers
- DN20 to DN6000 ~ depending on type of transducers
- Rechargeable battery, Autonomy 50 hours
- Data logger
- Communication: RS-485 Modbus RTU
- Output: 4-20mA
- IP67 flowmeter ~ IP68 transducers
- Compact & Robust
- Dimensions: 270 × 215 × 175 mm ~ Weight: 3 kg
- 2x Non-intrusive transducers -35 ° C to 85 ° C
- Other output (optional): Pulse, Relay
- Energy meter option
-
Garanties sécurité
-
Politique de livraison
-
Politique retours

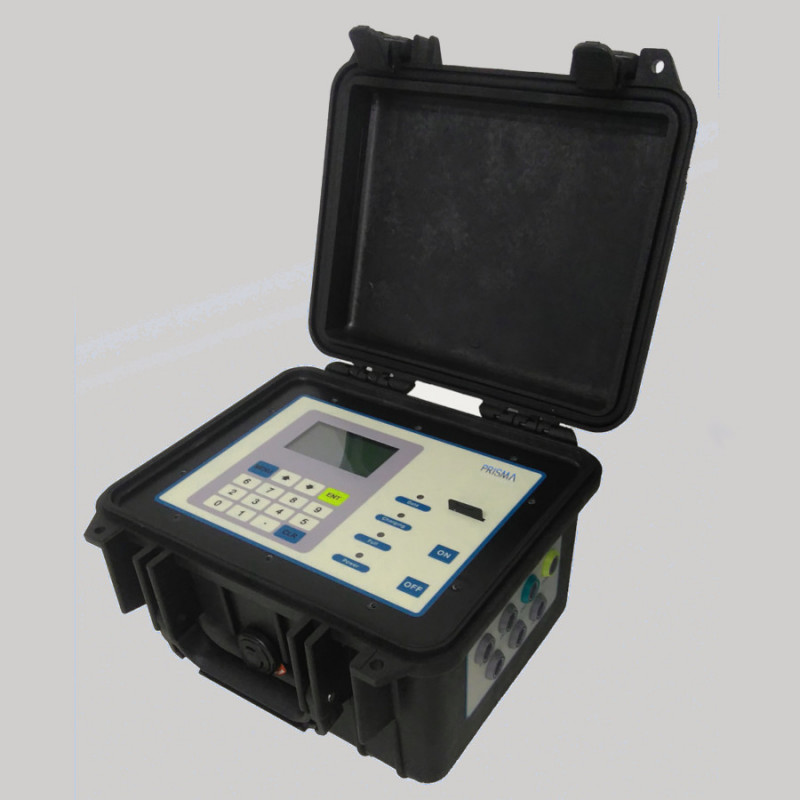

The Prisma Instruments DUS-TT-V portable ultrasonic flowmeter is designed to be compact and easy to use. It uses the principle of Transit Time and MultiPulse technology. It allows reliable measurements on a wide variety of liquids: Ultra-pure liquid, drinking water, chemical effluents, waste water, irrigation, cooling water, industrial effluents, etc. The DUS-TT-V flowmeter is easy to use, thanks to its non-intrusive transducers, usable on pipes ranging from 15 mm to 6000 mm (depending on the model), and its integrated recorder, the DUS-TT-V flowmeter is the ideal tool for your flow measurements on all types of pipeline. Its great autonomy (50 hours) and its versatility make it the ideal diagnostic tool for water networks, without pressure drop or risk of leakage.
Scope of delivery :
1x DUS-TT-V portable ultrasonic flowmeter
1x Transducers
2x 5 meters connection cable
1x Integrated recorder
1x Application gel
1x Communication: RS-485 Modbus RTU, 4-20mA
2x Fastening chains
1x Built-in battery + Charger
1x Aluminum carrying case
1x User manual
Other transducers if ordered
Other outings if ordered
DUS-TT-V
