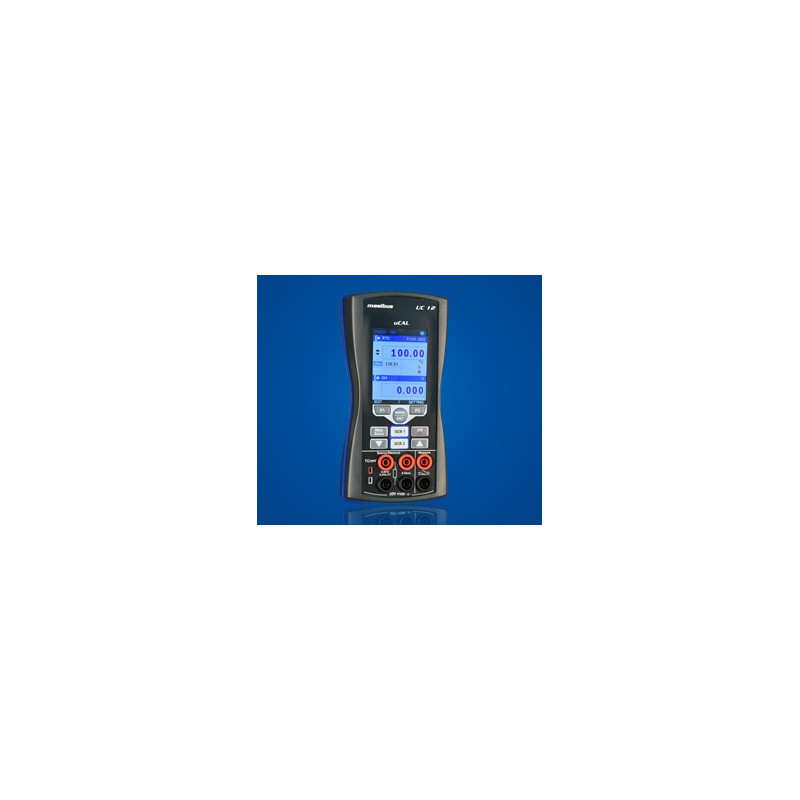

UC12 Universal Calibrator
  • Compact, handheld, User friendly menu
  • Easy to read Color Graphical TFT LCD display
  • Rechargeable lithium Ion battery with enhanced power control for prolonged battery life
  • Measure: mA/ V/ mV/ mA (24V)/ Switch-test / RTD/ TC/ Frequency/ Pulse
  • Source: mA/ V/ mV/ mA(2W)/ Resistance/ RTD/ TC/ Frequency/ Pulse
  • 24 VDC Loop power Supply to power transmitters and loops
  • Step/Ramp functions with Auto/Man selection
  • Universal Serial Bus (USB) communication port for charging, data retrieve and firmware upgrade
  • Data Logging to measure long time drift
  • Other Features: Max/Min/Average, filter settings, tare facility, adjustable backlight, alarm annunciation (on display and buzzer), glance screen mode
  • Continuity Test
  • Pulsed RTD transmitter compatible
  • HART loop resistor
Quantity
Demande de devis
En cours d’appro. livraison sous 10j

Add to wishlist

  • Garanties sécurité Garanties sécurité
  • Politique de livraison Politique de livraison
  • Politique retours Politique retours

Universal Calibrator uCAL model UC12  is the compact, rugged and easy to use hand held device with graphical user interface for precise measuring and sourcing of electrical and physical parameters

Universal Calibrator UC12  is designed to provide the best accuracy in all modes of operation.

Universal Calibrator UC12 has Source and Measurement capability with independent parameter and range selection for Source and Measure. UC12 has mA/ V/ mV/ mA (24V)/ Switch-test / RTD/ TC/ Frequency/ Pulse measurement capability and also has mA/ V/ mV/ mA (2W)/ Resistance/ RTD/ TC/ Frequency/ Pulse source capability.

There is an isolation between measure and source/ measure sections.

Universal Calibrator UC12 or has easy to operate short cut keys SCR1 and SCR2 for input selection for measure and source/ measure respectively.

Automatic step/ramp output with Auto/Man selection, data logging, Max/Min/Average values, scaling to Engineering units and filter settings enhances the use of Multifunction Calibrator.

It has been designed to give maximum Battery life on full charge, the backlight is adjustable for power saving and the display can be programmed to automatically enable the glance screen when not in use

Universal Calibrator UC12 comes with a Mini USB connector for charging, logged data retrieval and firmware upgrade. Standard accessories provided are patch cables, charger, USB cable, instruction manual, logged data retrieval software CD and calibration certificate, all in an attractive carrying case.
