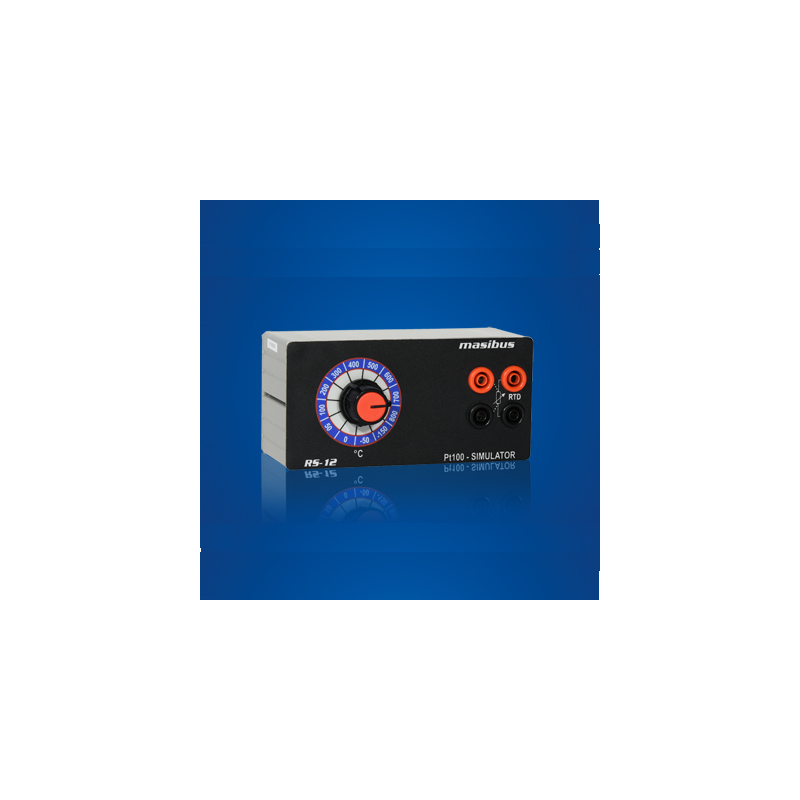

RS12 Pt100 Simulator
  • Direct Temperature output 12 Switched Steps
  • < 0.3 °C Accuracy
  • Quick Check Switch BOX
  • Allows 2, 3 or 4 wire connections
  • Compact Size
Quantity
Demande de devis
En cours d’appro. livraison sous 10j

Add to wishlist

  • Garanties sécurité Garanties sécurité
  • Politique de livraison Politique de livraison
  • Politique retours Politique retours

RTD simulator Masibus RS-12 is a high precision Simulator for the simulation of Pt100 resistance thermometers. RTD simulator RS-12 covers the general operating range of Pt100 thermometers with 12 calibration points. The Simulator is small in size, rugged and easy to use and it has been especially designed for field use.

Since the output is a purely passive resistance, it can operate with all types of Pt100 measuring equipments, including the live systems using pulsed, or interrupted excitation current.

The precision Pt100 simulator is used wherever measuring instruments or controlling systems have to be tested or calibrated with great precision.

A distinctive feature of this simulator is their simple operation. The resistance values required for simulation are directly set in °C. There is no need to use tables.

PI RS12
Reviews

No customer reviews for the moment.

Write your review

RS12 Pt100 Simulator

  • Direct Temperature output 12 Switched Steps
  • < 0.3 °C Accuracy
  • Quick Check Switch BOX
  • Allows 2, 3 or 4 wire connections
  • Compact Size
Write your review
