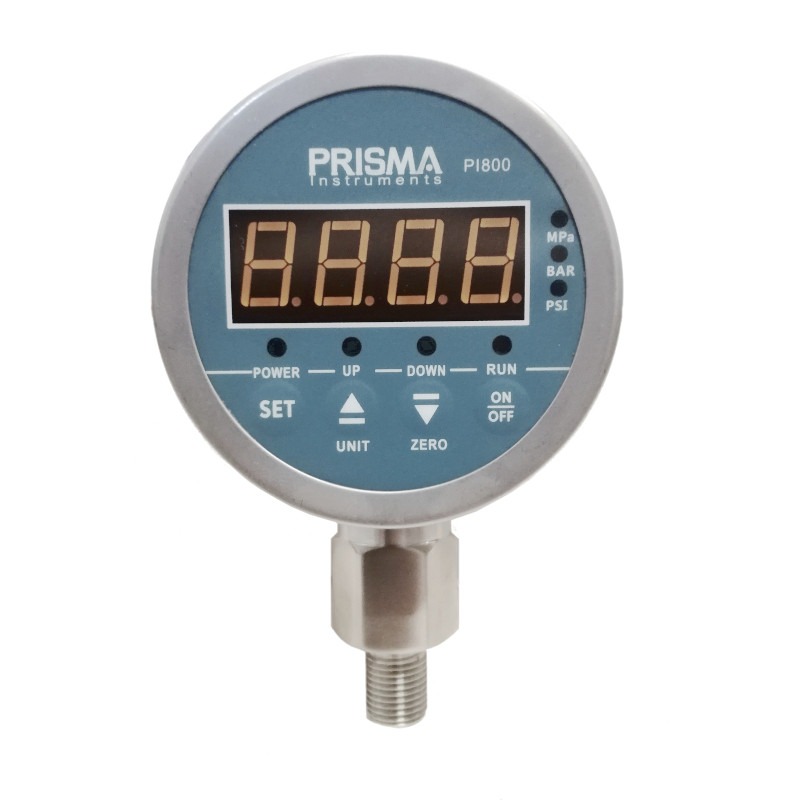

PI800 Digital pressure switch
  • Precision: ± 0.5%, or ± 0.25%, of full scale
  • Units: Bar MPa, PSI
  • Relative pressure: -1 bar up to 2000 bar
  • Differential pressure: 60 mbar up to 25 bar
  • Switch: relay signal adjustable over the whole scale
  • Display: Large red 4 DIGIT LED screen
  • Keys: On / Off, ZERO, UNIT, SET
  • Connection: 1/4 ’’ NPT, 1/4 ’’ BSP, 1/4 ’’ G (or customizable)
  • Dial size: 80 mm
  • All stainless steel fitting and housing
  • 220VAC or 24VDC power supply
  • CE & Ex ExibII BT4 certificate
  • Factory calibration certificate optional
  • ISO17025 calibration certificate optional
Quantity
En cours d’appro. livraison sous 10j

Add to wishlist

  • Garanties sécurité Garanties sécurité
  • Politique de livraison Politique de livraison
  • Politique retours Politique retours

Prisma Instruments PI800 smart pressure switches have high-precision sensors that display pressure in real time. They are equipped with a large LCD screen and have various functions, such as zeroing, backlight, ON / OF button, selectable measurement units, password protection, an alarm contact adjustable on the whole scale. They are simple to install and use. Their shells and connectors are made of 304 stainless steel. They can be used to measure gases, liquids, oils and other fluids suitable for stainless steel. The PI800 digital pressure regulator is designed to control oil pressure, air pressure, water pressure (or any other media) to start or stop equipment at a given pressure value. With password protection, intelligent voltage detection, undervoltage protection and reaction speed control, the PI800 pressure switch is the ideal tool to precisely control pressure and protect smarter your equipment. With an ergonomic menu, it can easily replace your mechanical pressure switches; your pressure transmitters + secondary instruments etc. This series uses high speed MCU data acquisition and processing. It allows you to automate the monitoring of a production line, of pressure equipment or the monitoring of the environment or other applications.

PI800

Download

Pressostat digitale

PI800 Pressostat digitale

Reviews

No customer reviews for the moment.

Write your review

PI800 Digital pressure switch

  • Precision: ± 0.5%, or ± 0.25%, of full scale
  • Units: Bar MPa, PSI
  • Relative pressure: -1 bar up to 2000 bar
  • Differential pressure: 60 mbar up to 25 bar
  • Switch: relay signal adjustable over the whole scale
  • Display: Large red 4 DIGIT LED screen
  • Keys: On / Off, ZERO, UNIT, SET
  • Connection: 1/4 ’’ NPT, 1/4 ’’ BSP, 1/4 ’’ G (or customizable)
  • Dial size: 80 mm
  • All stainless steel fitting and housing
  • 220VAC or 24VDC power supply
  • CE & Ex ExibII BT4 certificate
  • Factory calibration certificate optional
  • ISO17025 calibration certificate optional
