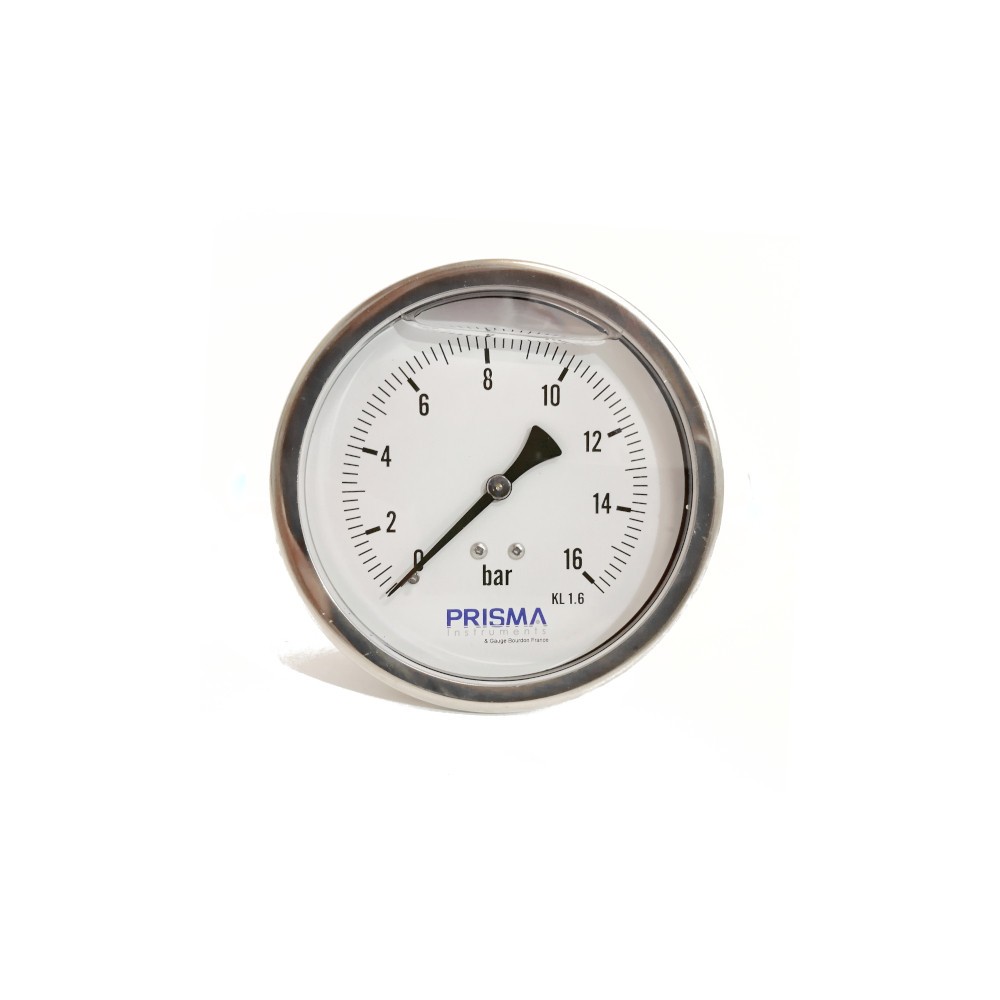

Bourdon Pressure Gauge, 100 mm stainless steel case, Back brass connection

Bourdon Pressure Gauge, 100 mm stainless steel case, Back brass connection

BSPGL
  • EN-837 standard
  • Dial diameter: 100 mm
  • 304 stainless steel case
  • Brass fitting
  • Graduation: bar
  • Accuracy class: ± 1.6%
  • Back connection: 1/2 "G (M)
  • Glycerin filling
  • Protection: IP 65
  • Process temperature: 120 ° C max

Order a calibration certificate >

Out of Stock
€40.00
Tax excluded
Delivered within 3-4 days
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Prisma Instruments BSPGL pressure gauges are manufactured with an AISI 304 stainless steel housing and a Brass fitting. The dial is in white aluminum with black graduations and numbers for optimal readability. With original Bourdon tube technology, the gauges are manufactured in accordance with standard EN 837-1. They are accurate to 1.6% of full scale. Mechanical pressure gauges are available with a rear or vertical connection as well as a dial size of 100 or 63mm. Countless options are available such as zero adjustment, dual scale, glycerin filling or cleaning for use with oxygen. Accessories can also be supplied with the pressure gauges, such as separators (highly corrosive fluids) valves, manifolds, adapters or cooling towers for use in high temperature conditions.

Features and Benefits

• Black balanced aluminum pointer
• Protection index IP65
• Bourdon tube in copper metal
• Welded tube connection assembly
• Brass fitting
• Class 1.6
• Gauge diameters of 63 or 100 mm

Applications
• Hydraulic & pneumatic
• Plumbing
• Diesel engines
• Compressors
• Agricultural equipment
• Public works
• Machine tools
• Pumps

: BSPGL
