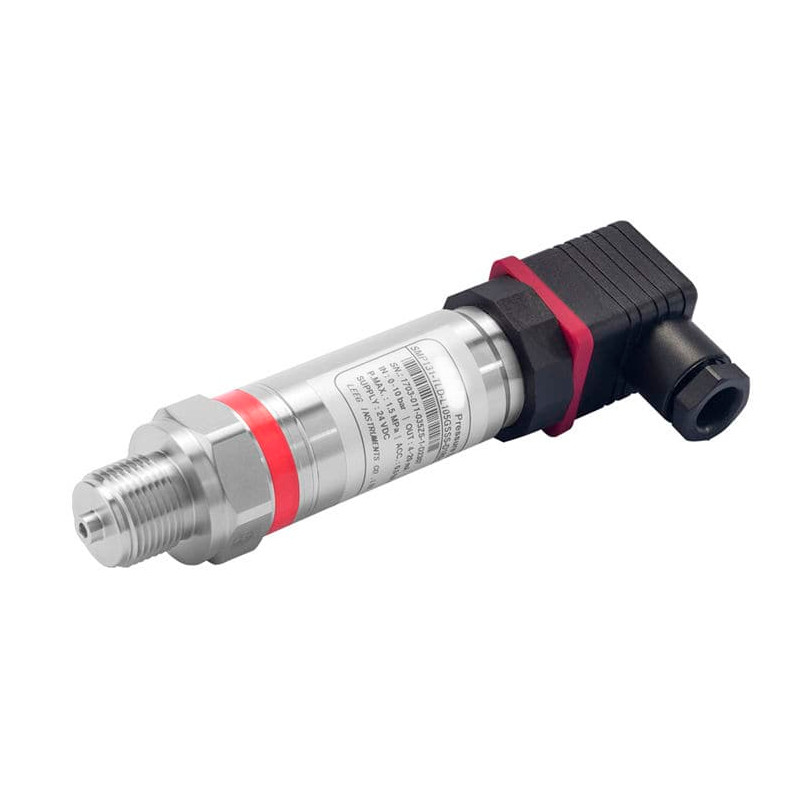

PI131-DST-S compact pressure transmitter
  • Measuring range : 2 kPa at 40 MPa (20 mBar at 40 bar)
  • Output signal: 4-20mA, 4-20mA + HART, 0-5 VDC, Modbus-RTU / RS485, others
  • Accuracy: ± 0.1% URL, optional ± 0.075% URL
  • Process connection: M20 * 1.5, 1/2 "G, 1/4" G, 1/2 "NPT or 1/4" NPT
  • Measuring medium: liquid, gas or vapor
  • Fluid temperature: -30 to 80 ° C
  • Electrical connection: DIN43650 IP65 or M12 * 1 (4 pins) IP67
Quantity
En cours d’appro. livraison sous 10j

Add to wishlist

  • Garanties sécurité Garanties sécurité
  • Politique de livraison Politique de livraison
  • Politique retours Politique retours

Pressure transmitters from the PI131 range are compact and very affordable. They allow you to reliably measure pressure or level with an accuracy of up to 0.075% of scale. They are offered with a varied choice of measuring range (calibratable), communication or output protocols, construction materials, process and electrical connections, and accessories. ISO 9001 and CE certified, transmitters perfectly meet the majority of applications in industrial fields. Choose our high technology PI131 pressure transmitter solution at the best prices.

PI131-DST-S

Download

PI131 Transmetteur de pression

PI131-DST-S transmetteur de pression

Reviews

No customer reviews for the moment.

Write your review

PI131-DST-S compact pressure transmitter

  • Measuring range : 2 kPa at 40 MPa (20 mBar at 40 bar)
  • Output signal: 4-20mA, 4-20mA + HART, 0-5 VDC, Modbus-RTU / RS485, others
  • Accuracy: ± 0.1% URL, optional ± 0.075% URL
  • Process connection: M20 * 1.5, 1/2 "G, 1/4" G, 1/2 "NPT or 1/4" NPT
  • Measuring medium: liquid, gas or vapor
  • Fluid temperature: -30 to 80 ° C
  • Electrical connection: DIN43650 IP65 or M12 * 1 (4 pins) IP67
