DUS-D-V Portable Doppler Ultrasonic Flow Meter
  • For wastewater and two-phase liquids (emulsion)
  • Non-intrusive transducers from DN40 to DN4000
  • Suitable for all types of pipes (uni-material)
  • Transducers -35 ～ 85 ° C
  • 5 m cables
  • Excellent measurement capacity for low flow rates (from 0.05m / s)
  • Easy installation & configuration
  • Outputs: 4-20mA as standard
  • Accuracy: 0.5% to 2.0%
  • Battery: Autonomy 40 h
€4,380.00 Tax included
Quantity
En cours d’appro. livraison sous 10j

Add to wishlist

Last time this product was added to a cart: 02/18/2020

  • Garanties sécurité Garanties sécurité
  • Politique de livraison Politique de livraison
  • Politique retours Politique retours

The Prisma Instruments DUS-DV doppler ultrasonic flowmeter has been designed to measure the volumetric flow rate of liquids loaded with particles or air bubbles in suspension (minimum 100 μm and concentration greater than 75 ppm), as well as two-phase liquids causing an emulsion. The measurement is non-intrusive thanks to transducers that can measure in closed conduits ranging from DN40 to DN4000, The ultrasonic flowmeter with doppler effect displays flow and totalization measurements. It can be equipped with 4-20mA outputs, totalization or alarm relays.

Scope of delivery :

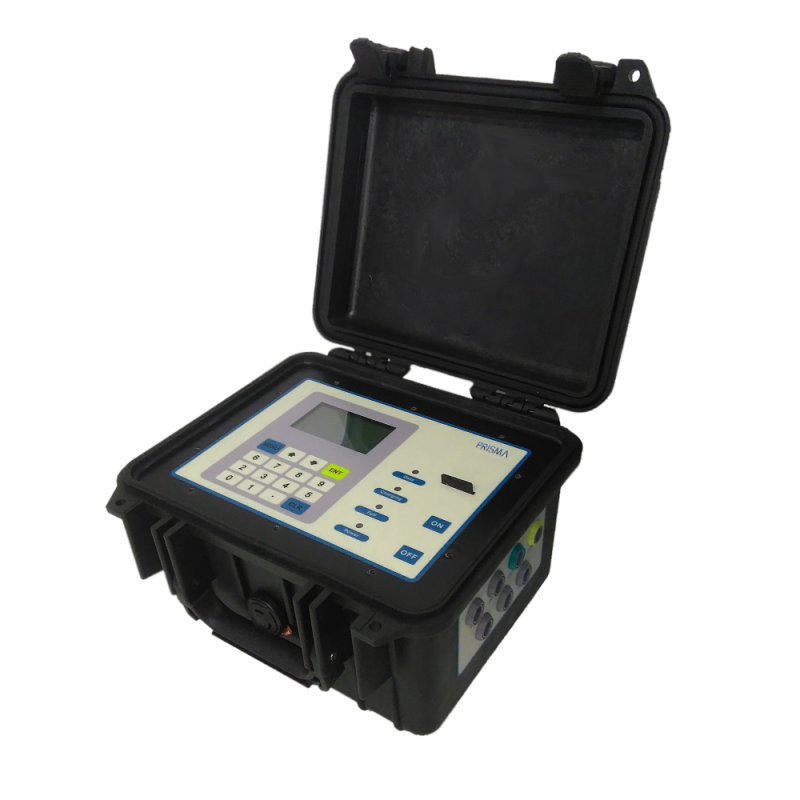

1x Doppler ultrasonic flowmeter in DUS-D-V case

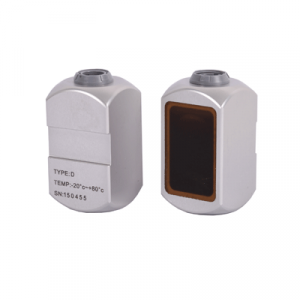

1x Pair of transducers
2x 5 meters of connection cables
1x 4-20 mA output
2x Serflex
1x Integrated AAA Ni-H 1 battery + Charger
1x User manual

DUS-D-V

Download

DUS-D à effet doppler

DUS-D_Débitmètres à ultrasons à effet doppler

Reviews

No customer reviews for the moment.

Write your review

DUS-D-V Portable Doppler Ultrasonic Flow Meter

  • For wastewater and two-phase liquids (emulsion)
  • Non-intrusive transducers from DN40 to DN4000
  • Suitable for all types of pipes (uni-material)
  • Transducers -35 ～ 85 ° C
  • 5 m cables
  • Excellent measurement capacity for low flow rates (from 0.05m / s)
  • Easy installation & configuration
  • Outputs: 4-20mA as standard
  • Accuracy: 0.5% to 2.0%
  • Battery: Autonomy 40 h
