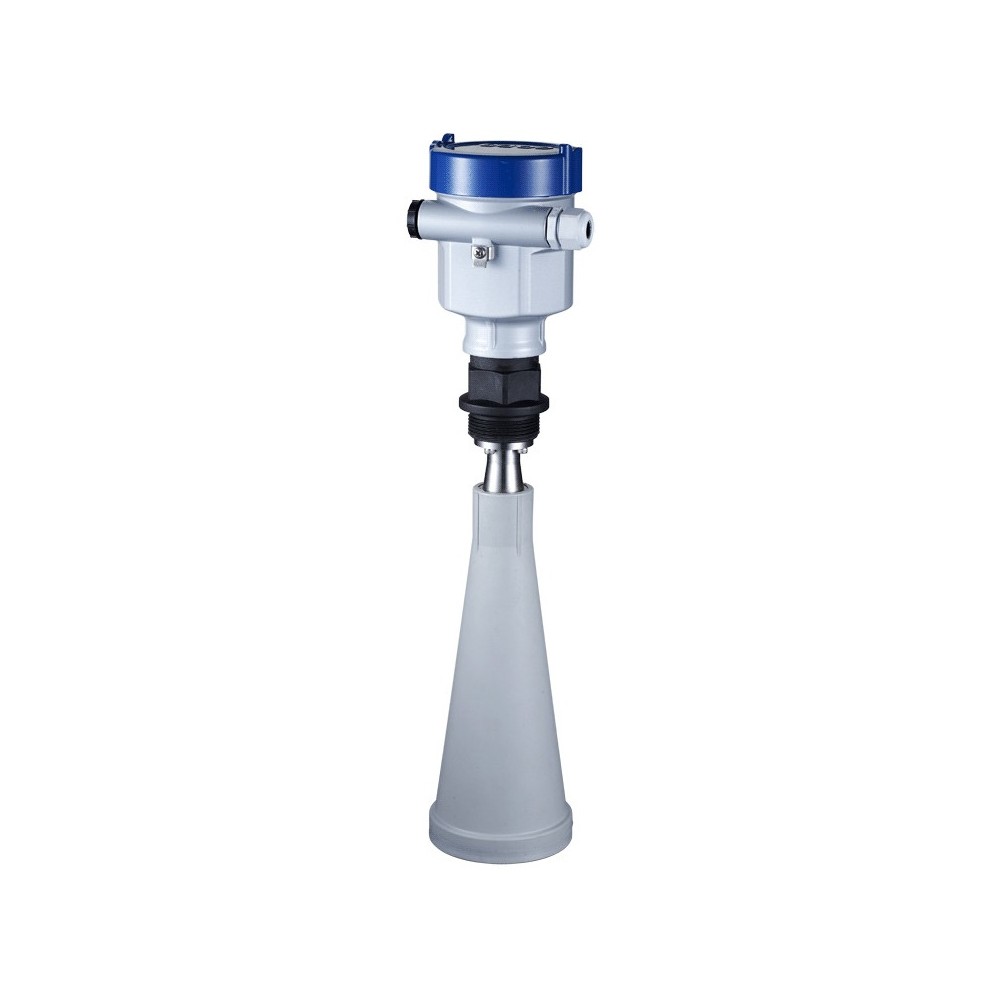

TNRP59 Liquid pulsed radar level transmitter

TNRP59 Liquid pulsed radar level transmitter

TNRP59
  • Maximum measurement range: 15m
  • Measurement accuracy: ± 10 mm
  • Process temperature: (-40 ～ 80) ° C (-40 ～ 120) ° C (-40 ～ 250) ° C
  • Process pressure: Normal, (-0.1 ～ 4) MPa
  • Frequency range: 26 GHz
  • Output signal: (4 ～ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
  • Process connection: G / H / I / J / K
  • Antenna material: S / T / V
  • Flange accessories: L / M / N / P
  • LCD optional
Out of Stock
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Application: normal temperature / normal pressure frequency: 26 GHz multiple patented antennas, anti-dew, anti-crystallization, anti-fixation, anti-dust, centralized beam. Solving the disadvantages of the 6G radar antenna, such as ease of blocking, large size, wide transmission angle, incorrect measurement, short measurement distance, etc.

Application:

Ideal for bulk level measurement and suitable for measuring the measuring range, high dust, high temperature and low dielectric constant in the cement, energy and steel industries.

Maximum measurement range: 15m
Measurement accuracy: ± 10mm

: TNRP59
Out of Stock

Download

Transmetteur de niveau radar

TNRP 55,56,57,58,59 Transmetteur de niveau radar pulsé liquide

Download (3.31MB)
