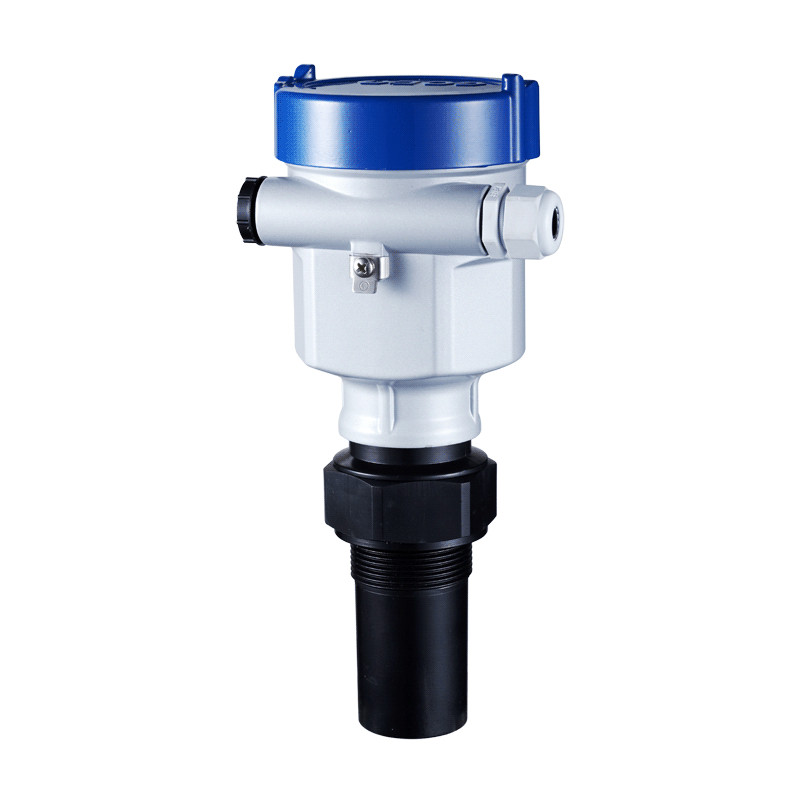

TNUC 552 Ultrasonic level transmitter
  • Measuring range: Liquid (0.4 ～ 8) m
  • Process connection: G2A
  • PTFE 、 PU / PC
  • Process temperature: (-40 ～ 70) ° C
  • Process pressure: (-0.02 ～ 0.1) MPa
  • Output signal: (4 ～ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
Quantity
Demande de devis
En cours d’appro. livraison sous 10j

Add to wishlist

  • Garanties sécurité Garanties sécurité
  • Politique de livraison Politique de livraison
  • Politique retours Politique retours

Ultrasonic pulses produced by the transmitter at the speed of sound to liquid. They are reflected by the surface of the material measured and received by the sensor system.

TNUC 552

Download

Transmetteur de niveau

TNUC 551 Transmetteur de niveau à ultrasons

Reviews

No customer reviews for the moment.

Write your review

TNUC 552 Ultrasonic level transmitter

  • Measuring range: Liquid (0.4 ～ 8) m
  • Process connection: G2A
  • PTFE 、 PU / PC
  • Process temperature: (-40 ～ 70) ° C
  • Process pressure: (-0.02 ～ 0.1) MPa
  • Output signal: (4 ～ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
Write your review
7 other products in the same category:
PIR6400 80GHz Radar Level Transmitter in flange version

Add to wishlist

PIR6400 80GHz Radar Level Transmitter in flange version
  • Non-contact level measurement of liquids
  • Applicable for continuous level measurement of liquids
    extremely aggressiveness in storage containers, reactors or process vessels.
  • Measuring ranges : 0 ~ 30m
  • Accuracy : ± 2mm
  • Process pressure : -1 bar ~ 16 bar
  • Process temperature : -40℃ ~ +200℃
  • Media-conracting materials :
    Process fittings: 316L
    Antenna: PTFE, PFA, PP
    Seal: FKM, EPDM, KALREZ
  • Display and Adjustment LCD display, tank side display and tank side hub
  • Communications : HART, RS485 Modbus, 4-20 mA...
  • Protect Level : IP67
  • Ex information : EX ia IIC T6 Ga Ex d ia [iaGa] IIC T6/T2 Gb Ex iaD tD A21 IP67T80ºC/T290ºC
  • Different Models depending on the application
Quick view
PIR6400 80GHz Radar Level Transmitter with rod antenna

Add to wishlist

PIR6400 80GHz Radar Level Transmitter with rod antenna
  • Non-contact level measurement of liquids
  • Continuous level measurement of aggressive liquids
    (storage containers, reactors or process vessels...)
  • Measuring ranges : 0 ~ 20m or 0 ~ 30m
  • Accuracy : ± 2mm
  • Process pressure : -1 bar ~ 2 bar
  • Process temperature : -40℃ ~ +200℃
  • Media-conracting materials :
    Process fittings: PP
    Antenna: PP
    Seal: FKM, EPDM, KALREZ
  • Display and Adjustment LCD display, tank side display and tank side hub
  • Communications : HART, RS485 Modbus, 4-20 mA...
  • Protect Level : IP67
  • Ex information : EX ia IIC T6 Ga Ex d ia [iaGa] IIC T6/T2 Gb
  • Different Models depending on the application
Quick view
PIR6400 80GHz Radar Level Transmitter in thread version

Add to wishlist

PIR6400 80GHz Radar Level Transmitter in thread version
  • Non-contact level measurement of liquids
  • Applicable for continuous level measurement of liquids
    with slightly aggressiveness in storage containers, reactors or process vessels.
  • Measuring ranges : 0 ~ 30m
  • Accuracy : ± 2mm
  • Process pressure : -1 bar ~ 2 bar
  • Process temperature : -40℃ ~ +200℃
  • Media-conracting materials :
    Process fittings: 316L
    Antenna: PEEK PTFE
    Seal: FKM, EPDM, KALREZ
  • Display and Adjustment LCD display, tank side display and tank side hub
  • Communications : HART, RS485 Modbus, 4-20 mA...
  • Protect Level : IP67
  • Ex information : EX ia IIC T6 Ga Ex d ia [iaGa] IIC T6/T2 Gb
  • Different Models depending on the application
Quick view
TNUC 553 Ultrasonic level transmitter

Add to wishlist

TNUC 553 Ultrasonic level transmitter
  • Measuring range: Liquid (0.5 ～ 15) m
  • Process connection: Flange or swivelling holder
  • PTFE 、 PU / PC
  • Process temperature: (-40 ～ 70) ° C
  • Process pressure: (-0.02 ～ 0.1) MPa
  • Output signal: (4 ～ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
Quick view
TNUC 551 Ultrasonic level transmitter

Add to wishlist

TNUC 551 Ultrasonic level transmitter
  • Measuring range: Liquid (0.25 ～ 4) m
  • Process connection: G1½A
  • PTFE 、 PU / PC
  • Process temperature: (-40 ～ 70) ° C
  • Process pressure: (-0.02 ～ 0.1) MPa
  • Output signal: (4 ～ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
Quick view
PIR6400 80GHz Radar Level Transmitter with plastic antenna

Add to wishlist

PIR6400 80GHz Radar Level Transmitter with plastic antenna
  • Non-contact level measurement of liquids
  • Applicable for continuous level measurement of liquids aggressive liquids
    with lower demands on pressure and temperature ranges.
  • Measuring ranges : 0 ~ 30m
  • Accuracy : ± 2mm
  • Process pressure : -1 bar ~ 2 bar
  • Process temperature : -40℃ ~ +130℃
  • Media-conracting materials :
    Process fittings: PP
    Antenna: PP
    Seal: PP PTFE
  • Display and Adjustment LCD display, tank side display and tank side hub
  • Communications : HART, RS485 Modbus, 4-20 mA...
  • Protect Level : IP67
  • Ex information : EX ia IIC T6 Ga Ex d ia [iaGa] IIC T6/T2 Gb
  • Different Models depending on the application
Quick view
