DUS-F6 - Clip-on water meter

DUS-F6 - Clip-on water meter

DUS-F6
  • Hose material: Metal/ rigid plastic tube made of PCV, PP or PVDF
  • Liquid type: Water/Other (fluids without solid particles or impurities)
  • 0-75° (no surface freezing)
  • Low speed cut-off value: 0.1m/s
  • Display: 256*128, LCD
  • Response time: 0.5-60s
  • Accuracy: +/-2%, (+/-1% after calibration)
  • Data storage period: 300ms
  • Memory for data saving: EEPROM, data storage more than 10 years
  • I/O power supply: M12 type aviation plug
  • Output: 4-20mA
  • Communication: Modbus RS485
  • Option for output: OCT, alarm relay
  • Power supply: 10-24VVDC
  • Electrical power : <3W
  • Ambient temperature : -10° to 60°C
  • Cable length: 2m, PT100 sensor cable length is 9m

Out of Stock
Quantity

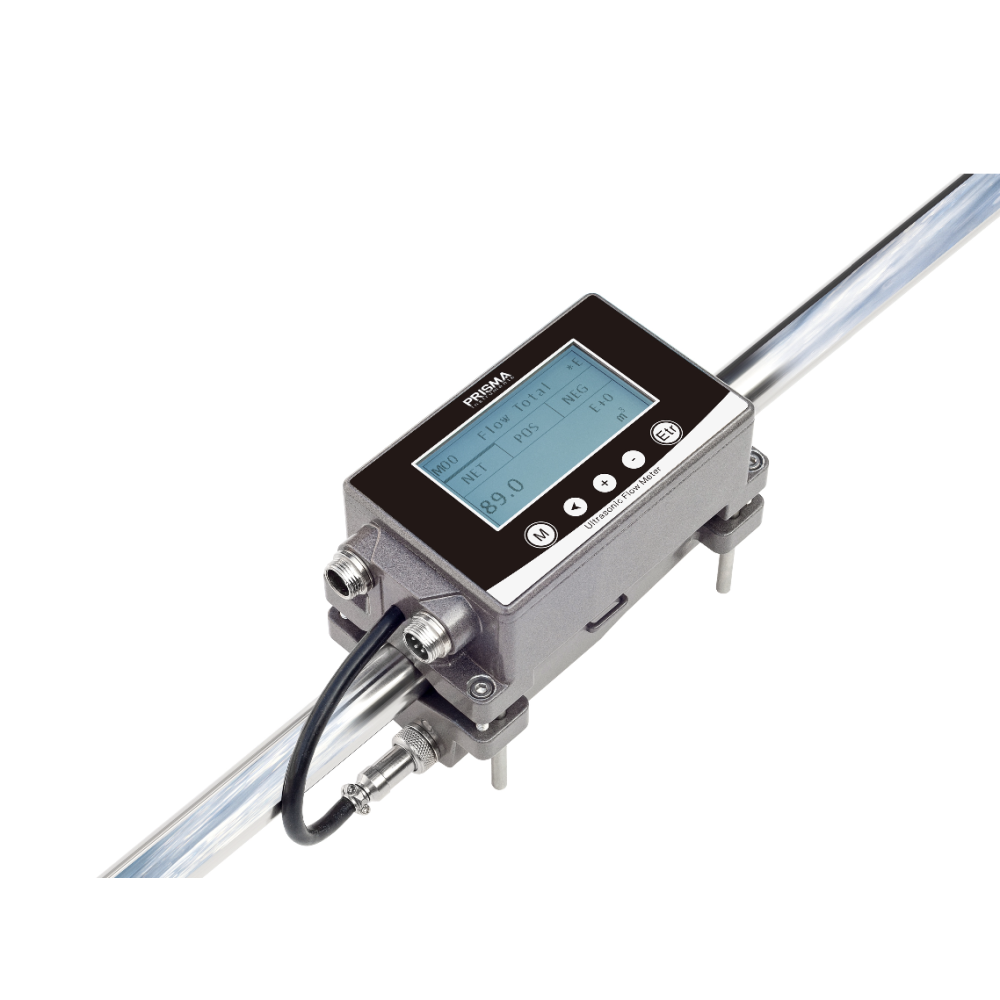

The DUS-F6 ultrasonic flow meter from Prisma Instruments has been specially designed to meet the recurring needs for non-intrusive metering of water and other clean liquids in residential or industrial installations. It is available in 2 models, the first equipped with transducers that adapt to pipes from DN15 to DN40, and the second from DN50 to DN65. It can be installed in a few seconds by placing it around the pipe, without the need to stop the flow or drain the circuit. Due to its compact size, the DUS-F6 meter can be easily installed in a confined space, or on several pipes when they are very close to each other. Optionally, equipped with non-intrusive PT1000 temperature probes, the DUS-E6 model will act as a thermal and cooling energy meter for HVAC installations and other building management. In addition, it also has a rich RS485 Modbus RTU network functionality and can therefore be easily connected to a GTC. Its very refined design, its many features, its excellent quality performance ratio justify its success with professionals in the sector.

: DUS-F6
