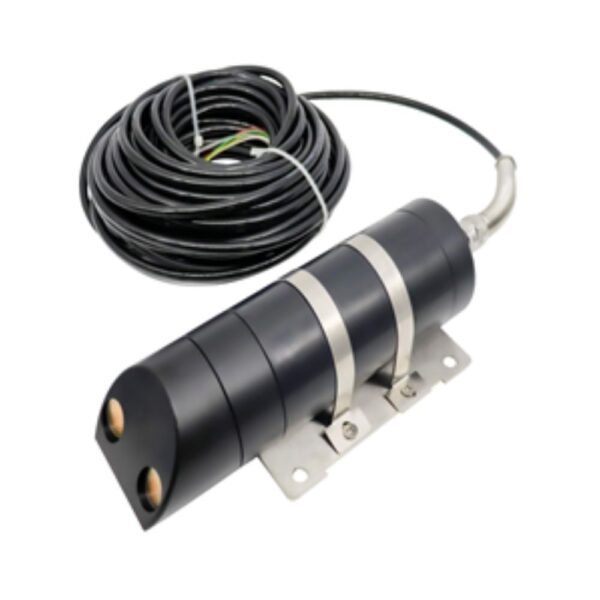

Ultrasonic Doppler Flow Velocity Meter

Ultrasonic Doppler Flow Velocity Meter measurement is based on the Doppler effect. The probe sends out a beam of ultrasonic waves obliquely upward. Power supply range: 10 VDC~30 VDC;
12V power consumption: 45mA±1mA (about 0.54W)
24V power consumption: 26mA±1mA (about 0.62W) RS485/ModBus standard protocol. Flow velocity range: ±0.03m/s~±5m/s (customizable ±0.03m/s~±10m/s); Water depth range: 0.02~3m, 0.02~10m (please confirm the maximum water depth before ordering); Flow velocity accuracy: ± 1% ;
Flow velocity accuracy: ±1~3% (measurement accuracy varies due to the on-site working environment); Water depth accuracy: ±3cm;
Flow velocity resolution: 1mm/s;
Temperature resolution: 0.1℃;
Water depth resolution: 1mm (3m range), 3mm (10m range).
