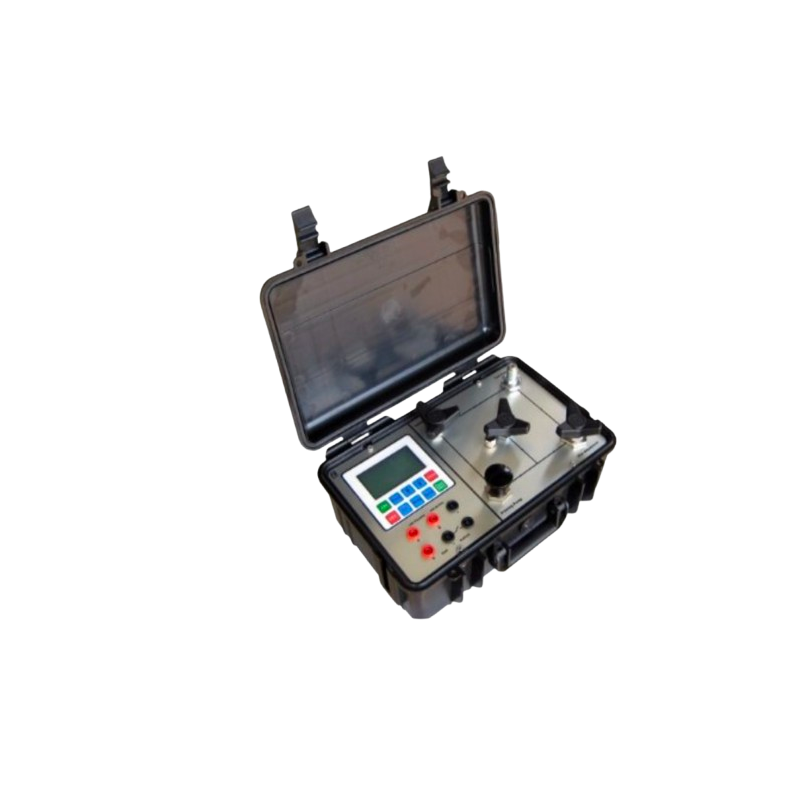

PPC-H 400 Hydraulic pressure calibrator 0 to 400 Bar ± 0.05%
Models: PPC-H (accuracy 0.05% FS)
Pressure Range: 0 to 400 Bar.
Temperature Compensation: 0 °C to 50 °C.
Display: Backlit LCD, 5-digit resolution, multiple units (Pa, Bar, PSI, mmHg, etc.).
Inputs: Current (50 mA active / 25 mA passive), voltage (0-30 VDC), resolution 0.001.
Pressure Generation: Integrated pneumatic/hydraulic pumps with fine adjustment.
Construction: Robust IP10 case, 330 x 235 x 125 mm, 6 kg.
Overpressure Alarm: 120% FS (visual/audible).
Power Supply: Rechargeable battery.
Delivery: Calibrator, adapters, test kit, oil, RS-232, manual.
Quantity
Demande de devis
En cours d’appro. livraison sous 10j

Add to wishlist

  • Garanties sécurité Garanties sécurité
  • Politique de livraison Politique de livraison
  • Politique retours Politique retours

The PPC-H is a next-generation hydraulic pressure calibrator. Equipped with an integrated pump, it enables the generation, control, and measurement of hydraulic pressures from 0 to 400 bar with highly accurate pressure sensors. It also features a convenient device for measuring electrical current and voltage. Fully portable and equipped with a rechargeable battery, it is ideal for field measurements. This tool is perfect for calibration, maintenance, and troubleshooting of pressure instruments and serves as an excellent alternative to manual pumps that require more effort, as well as a standard pressure calibrator.

PPC-H 400
Reviews

No customer reviews for the moment.

Write your review

PPC-H 400 Hydraulic pressure calibrator 0 to 400 Bar ± 0.05%

Models: PPC-H (accuracy 0.05% FS)
Pressure Range: 0 to 400 Bar.
Temperature Compensation: 0 °C to 50 °C.
Display: Backlit LCD, 5-digit resolution, multiple units (Pa, Bar, PSI, mmHg, etc.).
Inputs: Current (50 mA active / 25 mA passive), voltage (0-30 VDC), resolution 0.001.
Pressure Generation: Integrated pneumatic/hydraulic pumps with fine adjustment.
Construction: Robust IP10 case, 330 x 235 x 125 mm, 6 kg.
Overpressure Alarm: 120% FS (visual/audible).
Power Supply: Rechargeable battery.
Delivery: Calibrator, adapters, test kit, oil, RS-232, manual.
